Synrad Firestar f-Series operator’s manual
Unpacking
Removing the lifting handles
Once you have placed the f400 laser in its nal mounting location, refer to Figure 1-2 and perform the fol-
lowing steps to remove the lifting attachments.

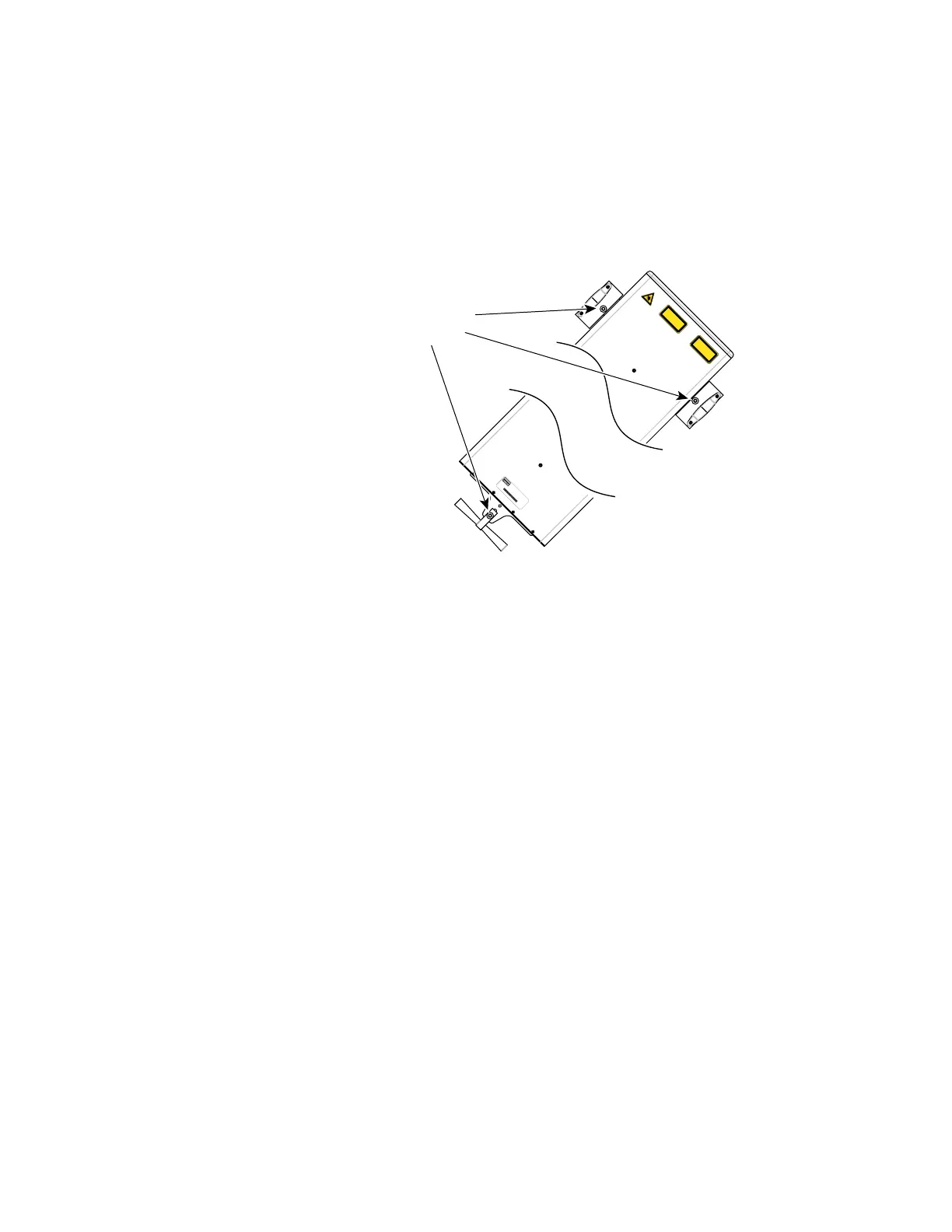

Figure 1-2 Removing lifting handles
1
Locate the 8 mm hex wrench included with the accessory items.
2
Remove the M10 × 1.5 metric capscrews from the three locations shown in Figure 1-2.
3
Retain the three M10 × 1.5 capscrews. Use these bolts for mounting if metric fasteners are required.
4
Store the lifting attachments so that they can be reinstalled if the f400 is moved to another location.
