Synrad Firestar f series User Manual

technical reference
339
Synrad Firestar f-Series operator’s manual
Firestar f400 package outline
drawing

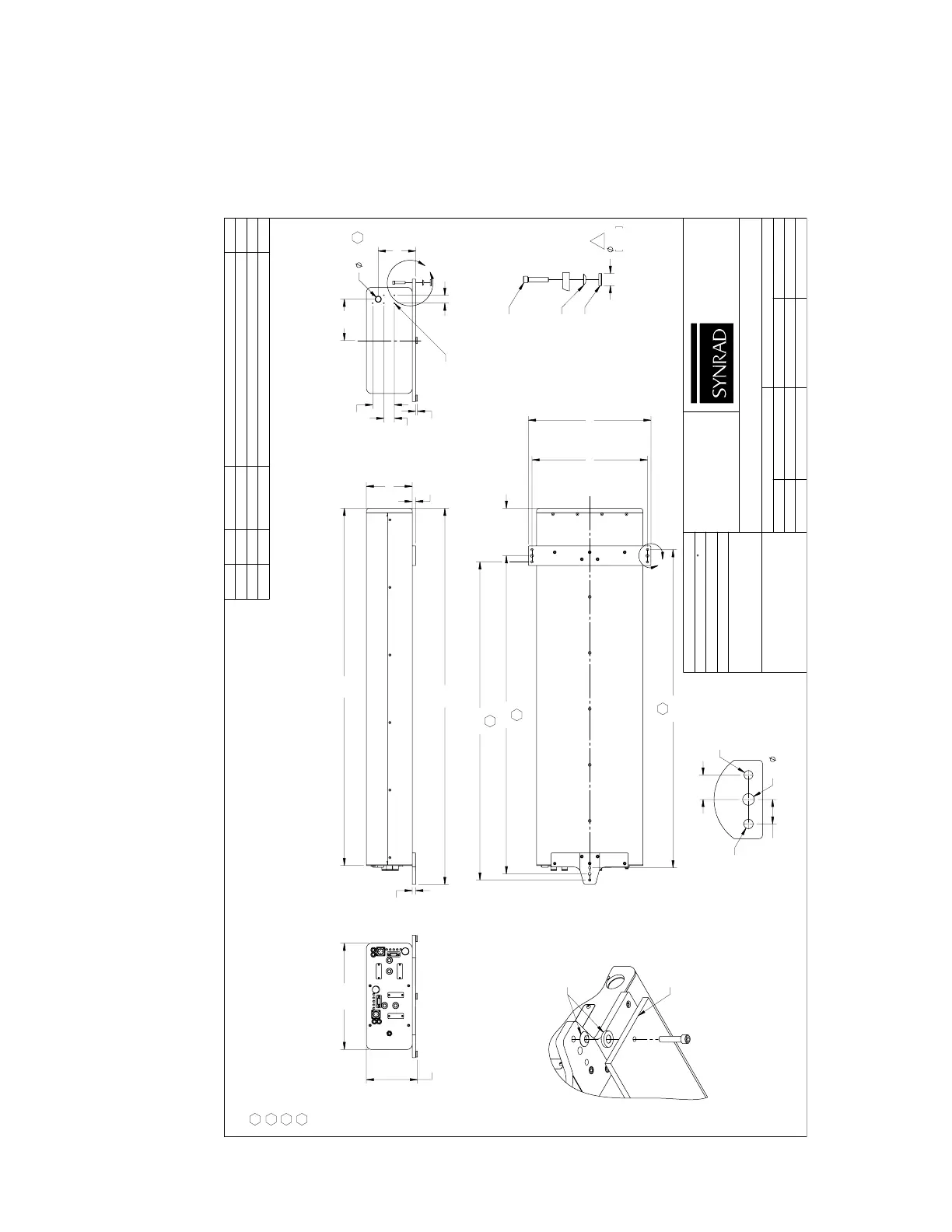

Figure 3-21 Firestar f400 package outline and mounting dimensions
.485
51.0
53.7
.485
6.55
7.29
(HEIGHT INCLUDING WASHERS)
15.18
.750
BEAM EXIT
5.9
3.10
1.50
.250
1.125
5.3
MOUNTING HOLES
6X 8-32 UNC ACCESSORY
B
C
L
F
4
45.45
45.45
45.45
16.500 17.500
6.77±.02
A
C
L
1
2
3
.875
.875
3/8-16 UNC-2B
2X
.413 THRU
M10 X 1.5
DETAIL A
.876
22.25
DETAIL B
M10 OR 3/8 SCREW
THROUGH CENTER HOLE
SPHERICAL WASHER
(BALL)
SPHERICAL WASHER
(CUP)
TOP ACCESS
MOUNTING
BOTTOM ACCESS
MOUNTING
SPHERICAL WASHERS MOUNTING SURFACE
1 2 3
NOTES:
THIS MOUNTING HOLE PATTERN IS USED WHEN BOTTOM ACCESS MOUNTING IS DESIRED WITH M8 FASTENERS. THIS MOUNTING HOLE PATTERN IS USED WHEN TOP ACCESS MOUNTING IS DESIRED, STANDARD OR METRIC FASTENERS. THIS MOUNTING HOLE PATTERN IS USED WHEN BOTTOM ACCESS MOUNTING IS DESIRED WITH 5/16-18 FASTENERS. BEAM PATH MAY NOT BE CENTERED OR PERPENDICULAR TO FACEPLATE APERTURE
.
4
DESCRIPTION:
FINISH:
MATERIAL:
REV ECO DATE
DESCRIPTION DB
TOLERANCES UNLESS NOTED:
0.5
ANGLE = ±
0.1
.x = ±
0.01
.xx = ±
0.005
.xxx = ±
.
PROPRIETARY
THIS DRAWING IS PROPRIETARY TO
SYNRAD INC. AND SHALL NOT BE
USED OR DISCLOSED IN WHOLE
OR IN PART WITHOUT WRITTEN
PERMISSION OF SYNRAD INC.
PART NUMBER:
DWG/FILE NUMBER:
SHEET
ENG:
DRAWN BY:
DATE:
UNITS:
CATEGORY:
CHECKED BY:
DATE:
SIZE: B
FINISH CLASS:
APPROVED BY:
DATE:
SYNRAD INC. 4600 Campus Place Mukilteo, WA 98275 Phone: (425)349-3500 Fax: (425)349-3667
OUTLINE & MOUNTING, F400
12-Mar-04
300-19106-01
1
.
.
.
300-19106-01
of
1
.
E. Stockinger
Inches
.
.
.
DMDADD BEAM EXITØ, CONVERT TO SOLIDWORKS
15-Aug-08
3912D
ADD NOTE 4
E
DMD
9-Sep-09
4107
ADD WASHER DIMENSION
F
DMD
18-Mar-11
4326
