Step 1: Install High-Pressure Piping Manifold

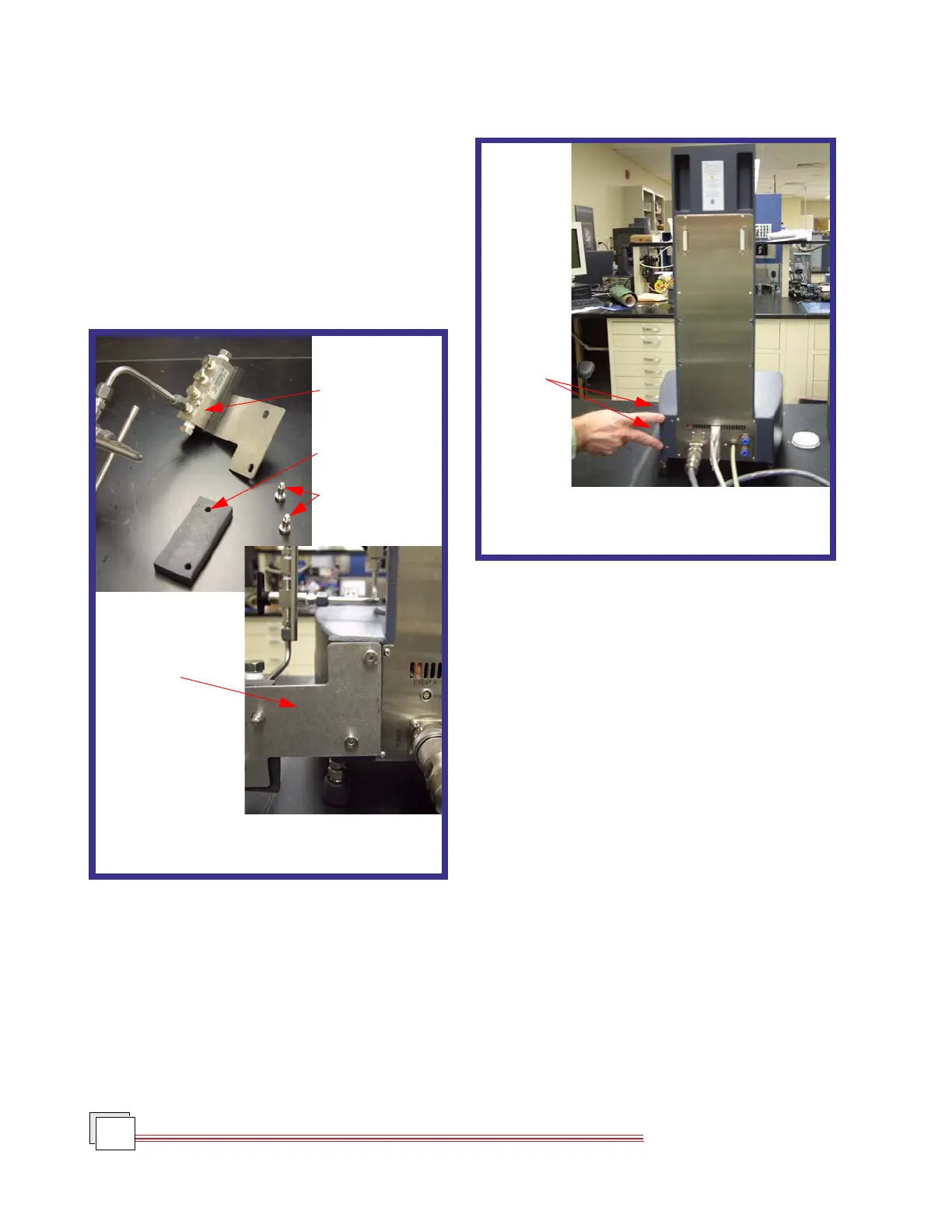

The pressure manifold attaches to the lower right
rear as viewed from front of rheometer or left lower
corner when facing rear of the AR rheometer, as
shown in Figure 8.11.
Attach the mounting plate and Sorbothane block to
the two M5 using the cap head screws provided, as
shown in Figure 8.12 below.
Attach
here
Figure 8.11
Attach Manifold to Back of Rheometer
manifold
Manifold
Sorbothane Block
Cap Head Screws
Figure 8.12
Manifold Installed
Manifold
Bracket
