Tait TM9100 Service Manual

TM9100 Service Manual Description 23
© Tait Electronics Limited August 2005
2 Description
This section describes the mechanical design and architecture of the radio,
explains the operation of the transceiver and the control head, and gives
pinouts of the radio connectors.
2.1 Mechanical Design
Overview The radio consists of the following main components:
■ control head B
■ radio body C
The control head B clips firmly to the front face of the radio body C,
where a seal
E provides IP54 class protection. A control-head loom D
connects the control head to the radio body. Two dot-dash-dot marks at the
bottom of the radio body indicate the positions where a screwdriver is
applied to separate the control head from the radio body.

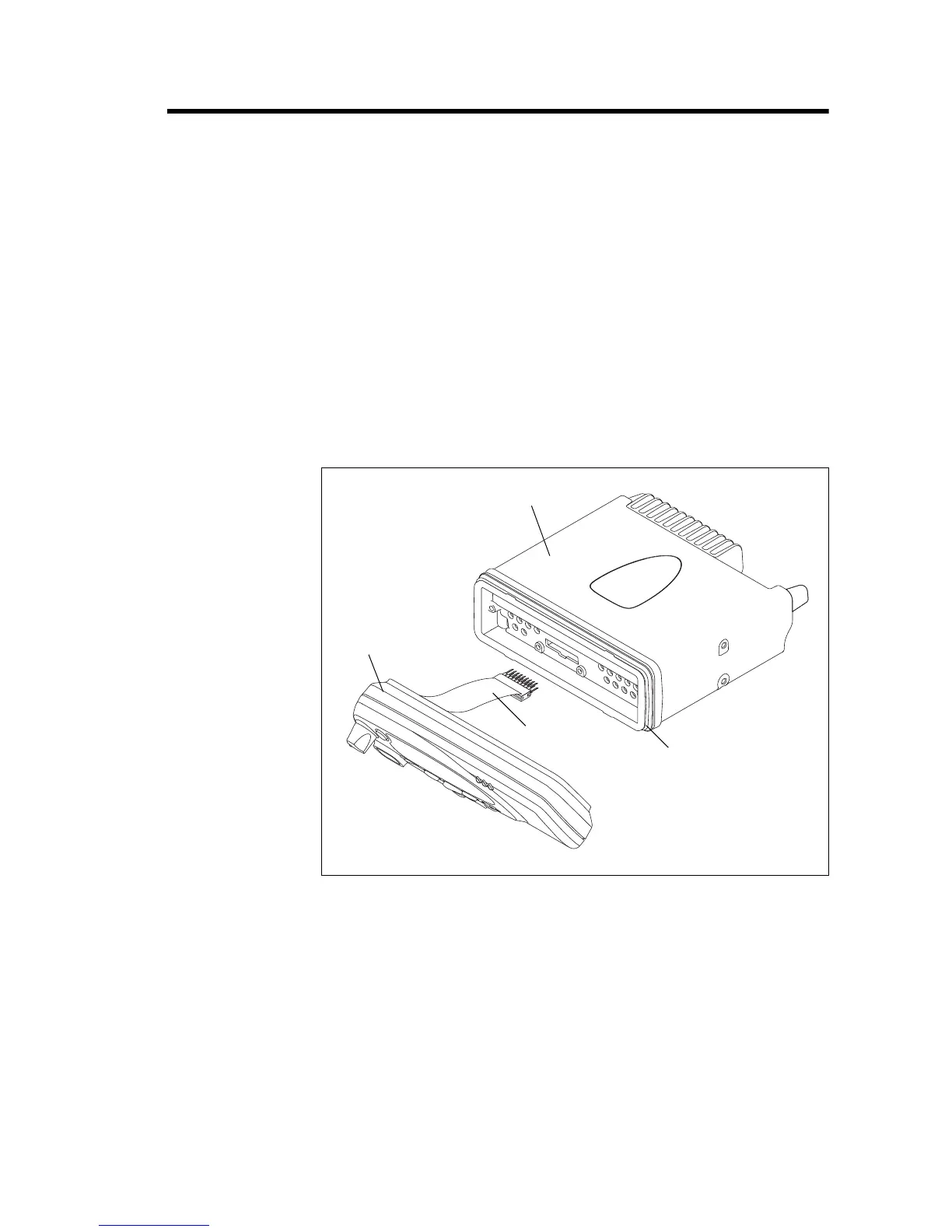

Figure 2.1 Components of the radio
C
D
B
E
3068z_01
