Tait TM9100 Service Manual

TM9100 Service Manual Installing an Enhanced Remote Kit 463
© Tait Electronics Limited August 2005

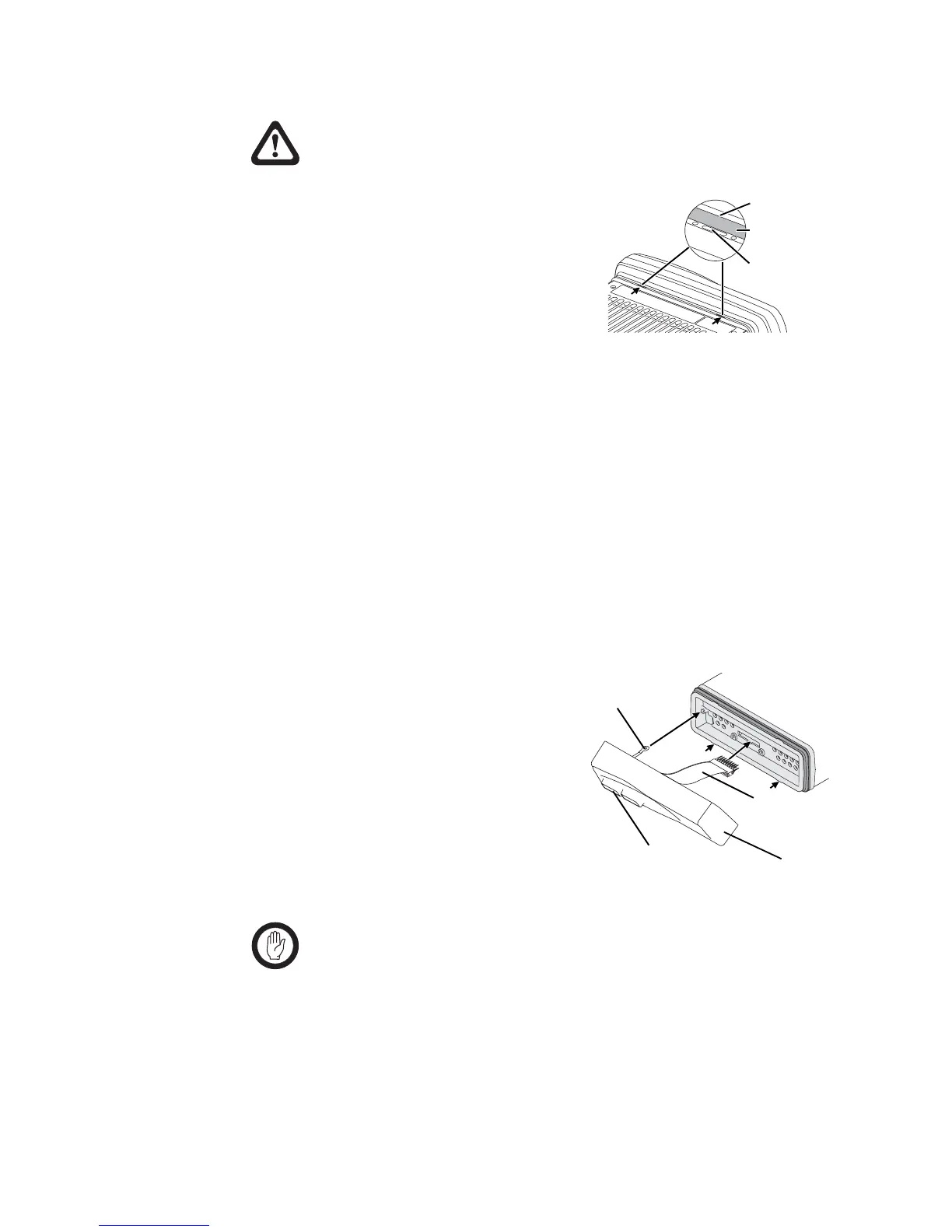

23.1.3 Removing the Control Head from the Radio Body (if necessary)
Caution During this procedure, take care that the control-
head seal is not damaged. Damage to this seal
reduces environmental protection.
1. On the underside of the radio,
insert a 5mm (3/16 inch) flat-
bladed screwdriver between the
control head and the control-head
seal, in the positions shown.
Insertion points and are lever
points and are indicated on the
radio chassis by a dot-dash-dot pattern (
•
–
•
).
2. Use the screwdriver to lift the control head off the chassis clip, then
repeat in the other position.
3. Unplug the control-head loom from the radio body.
The control head is now separate from the radio body.
23.1.4 Installing the Torso Interface
The torso interface must be installed onto the radio body, in place of the
control head.
1. Screw the solder tag
1)
onto one of the screw bosses on the
radio chassis.
2. Plug the torso-interface loom
j
onto the control-head connector.
3. Insert the bottom edge of the
remote control head
b
onto the
two clips in the front of the radio
chassis, then snap into place.
4. Remove one of the bungs
h
covering the RJ45 connectors.
The remote cable
e
will plug
into this connector once the installation is complete.
If the remote cable is not installed in the RJ45 cavity, then
the RJ45 bung must be installed. This ensures that the torso
interface is sealed against water, dust and other
environmental hazards.
lever point
control-head seal
indication of
lever point
j
1)
b
h
