TM9100 Service Manual Transmitter Fault Finding (50W/40W Radios) 313
© Tait Electronics Limited August 2005

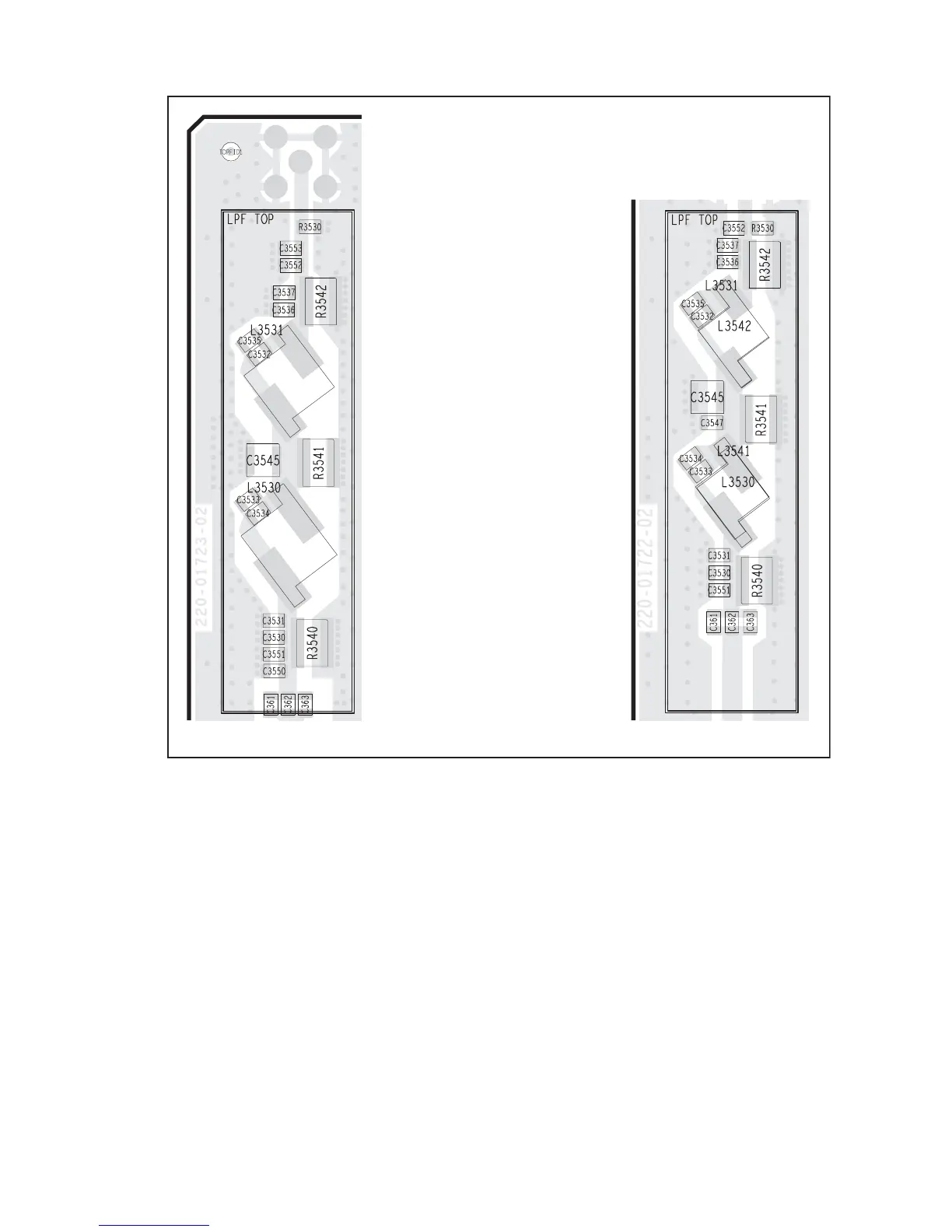

Figure 11.30 Circuitry under the
LPF TOP can
B1 BAND H5, H7 BANDS
