Tait TM9100 - Shielding Cans and Connectors (Bottom Side of Main-Board Assembly)

TM9100 Service Manual General Information 109
© Tait Electronics Limited August 2005
Can Removal
and Installation
Cans are best removed and installed using a can-removal tool. If this tool
is available, technicians should refer to the documentation supplied with
the tool for the correct procedures. If the tool is not available, a hot-air
tool may be used instead. However, technicians require training in the
best techniques to employ in the absence of a can-removal tool. Such
training is part of the accreditation process for service centers.

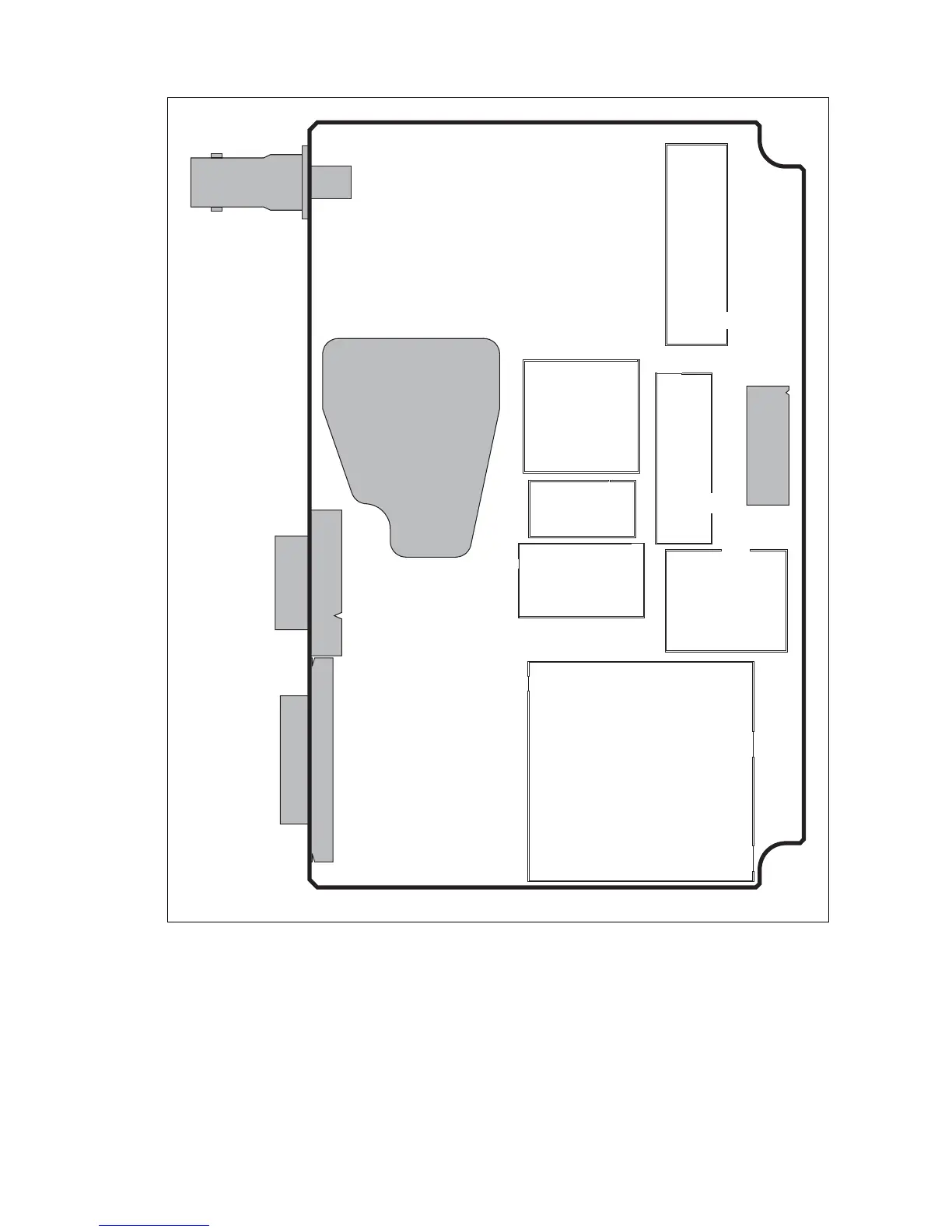

Figure 4.4 Shielding cans and connectors (bottom side of main-board assembly)
DIGITAL BOARD
SYN BOT
LO2 BOT
VCO BOT
VCXO BOT
CDC BOT
NB BOT
(VHF ONLY)
SK103 RF CONNECTOR
SK101
AUXILIARY
CONNECTOR
PL100
POWER
CONNECTOR
COPPER PLATE
SK100
CONTROL-
HEAD
CONNECTOR
