284 Transmitter Fault Finding (50W/40W Radios) TM9100 Service Manual
© Tait Electronics Limited August 2005

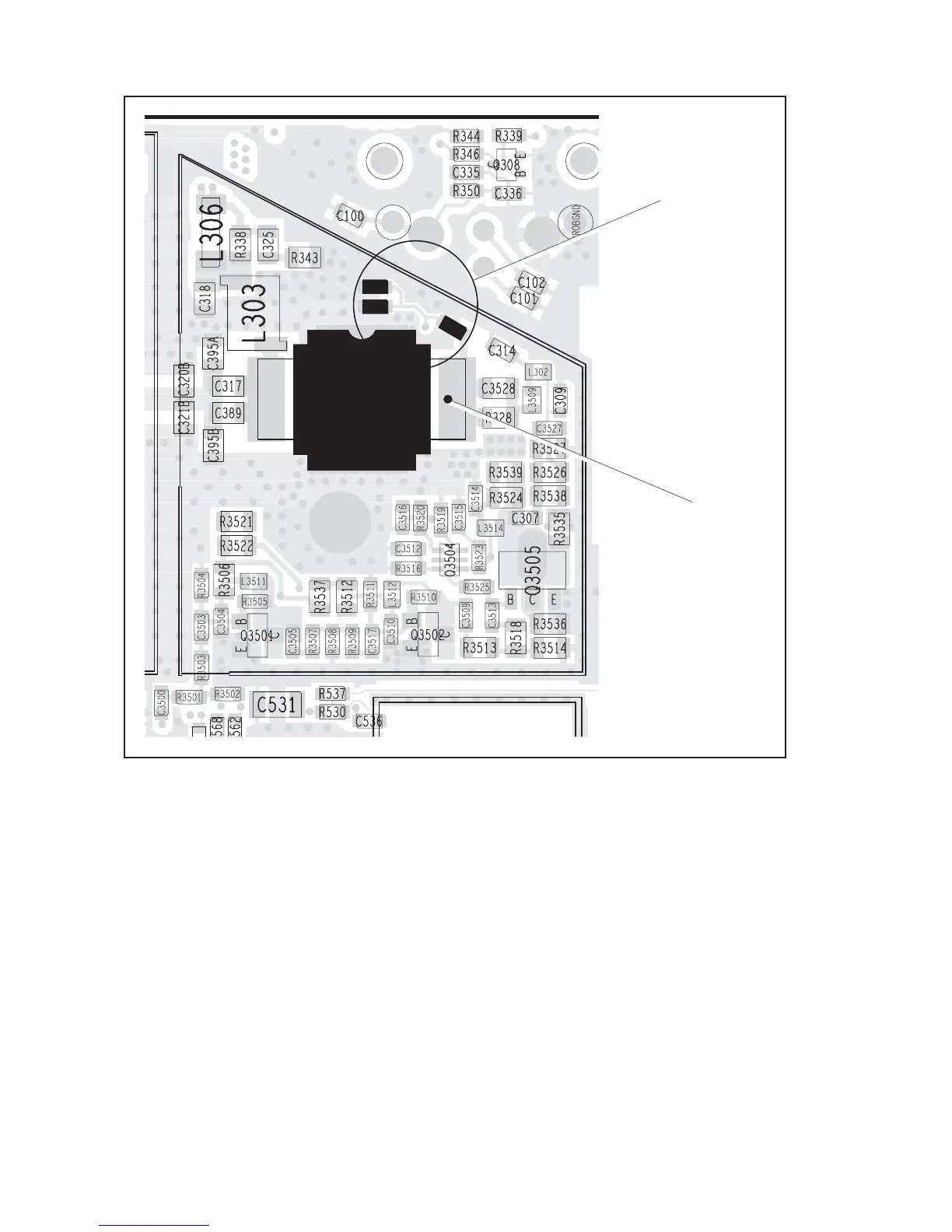

Figure 11.16 PA driver circuitry under the
PAD TOP can (H5 and H7 bands)
PAD TOP
H5, H7 BANDS
Q306
R324
C310
R327
GATE OF Q306
COMPONENTS C310,
R324 AND R327
