368 Transmitter Fault Finding (25W Radios) TM9100 Service Manual
© Tait Electronics Limited August 2005

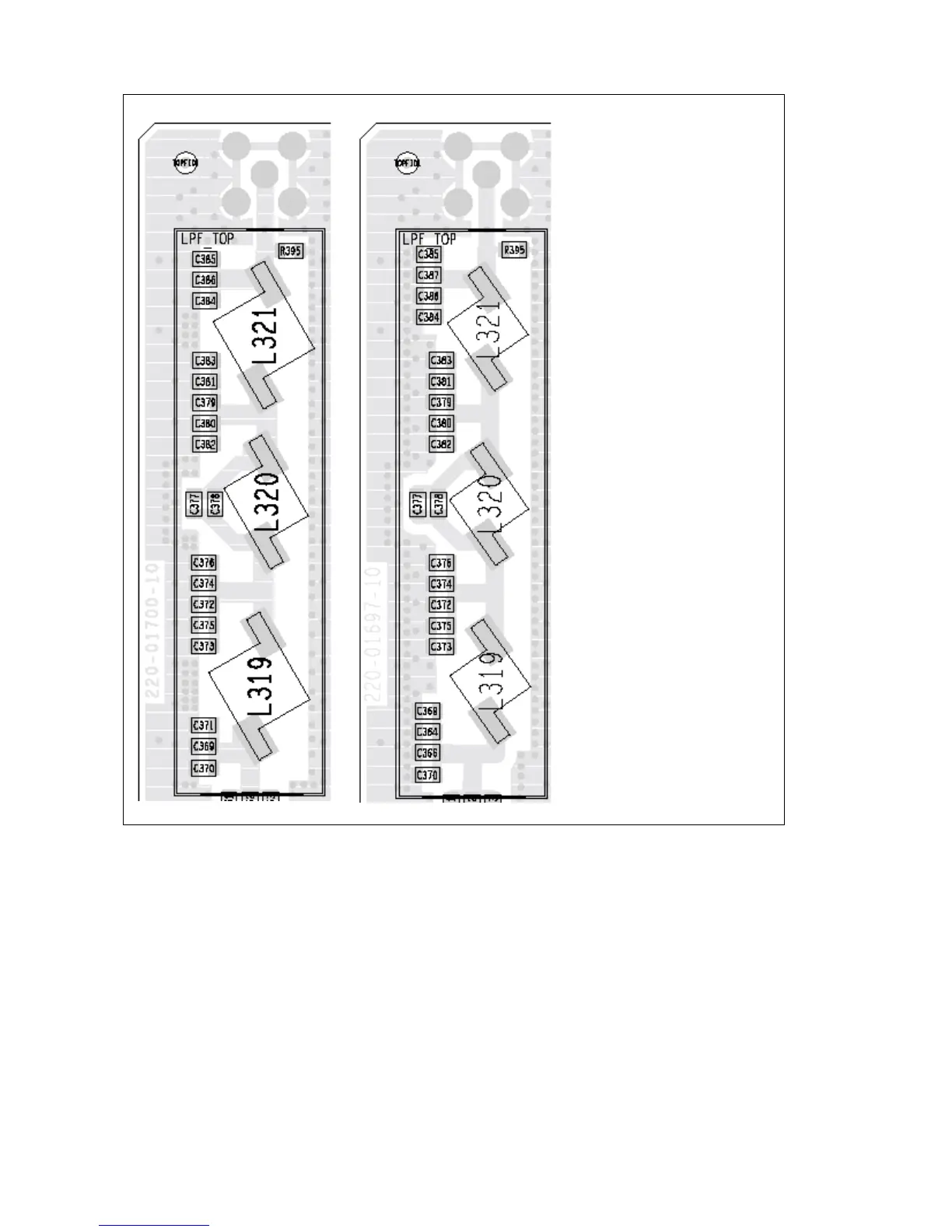

Figure 12.20 Circuitry under the
LPF TOP can (top side)
B1 band H5/H6 bands
