TM9100 Service Manual Transmitter Fault Finding (25W Radios) 367
© Tait Electronics Limited August 2005

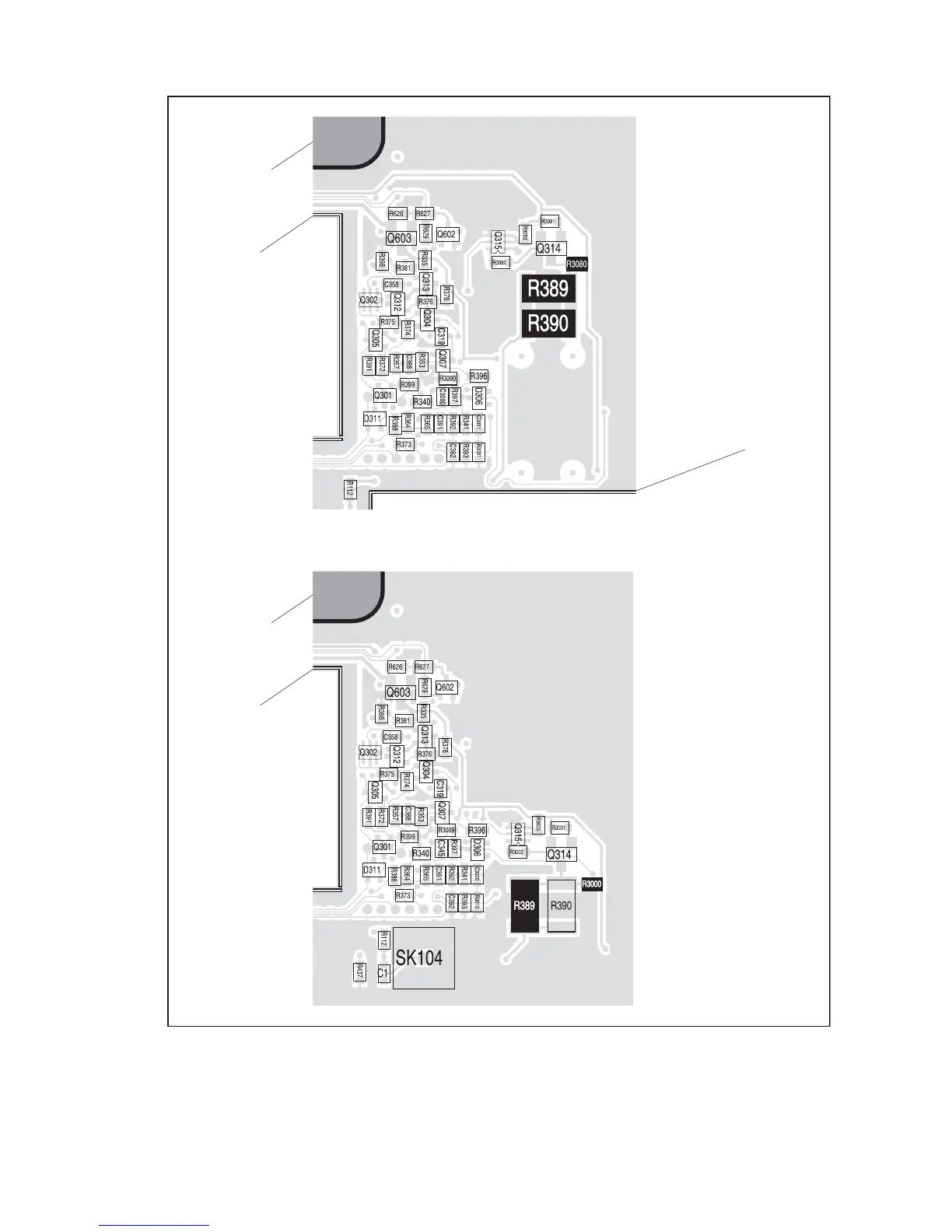

Figure 12.19 Components of concern on the bottom-side of the main board
B1 BAND
COPPER PLATE
VCO BOT CAN
NB BOT CAN
COPPER PLATE
VCO BOT CAN
H5, H6 BANDS
