384 CODEC and Audio Fault Finding TM9100 Service Manual
© Tait Electronics Limited August 2005

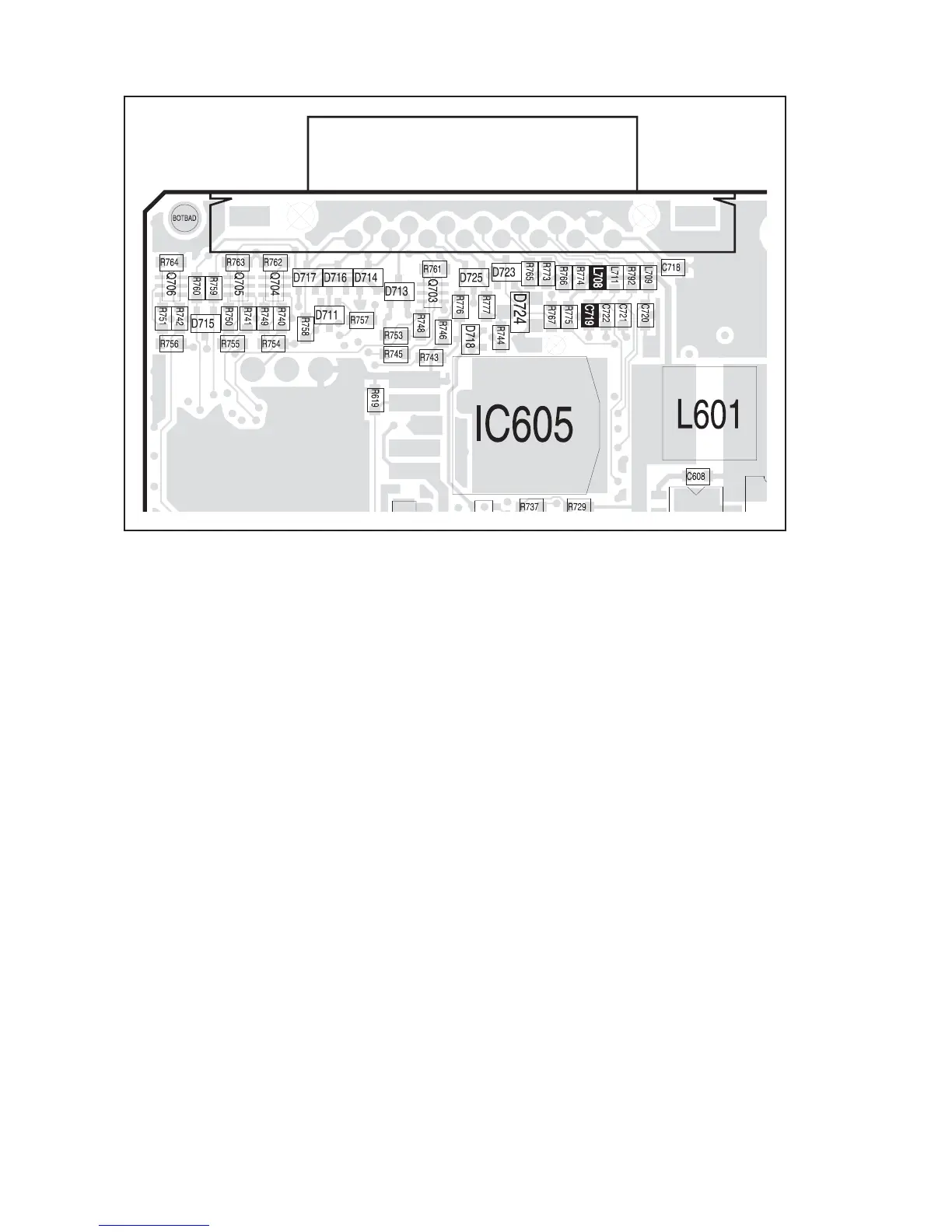

Figure 13.6 Circuitry in the vicinity of the auxiliary connector (bottom side)
AUXILIARY CONNECTOR
SK101
