2-2
2
SERVICE DATA

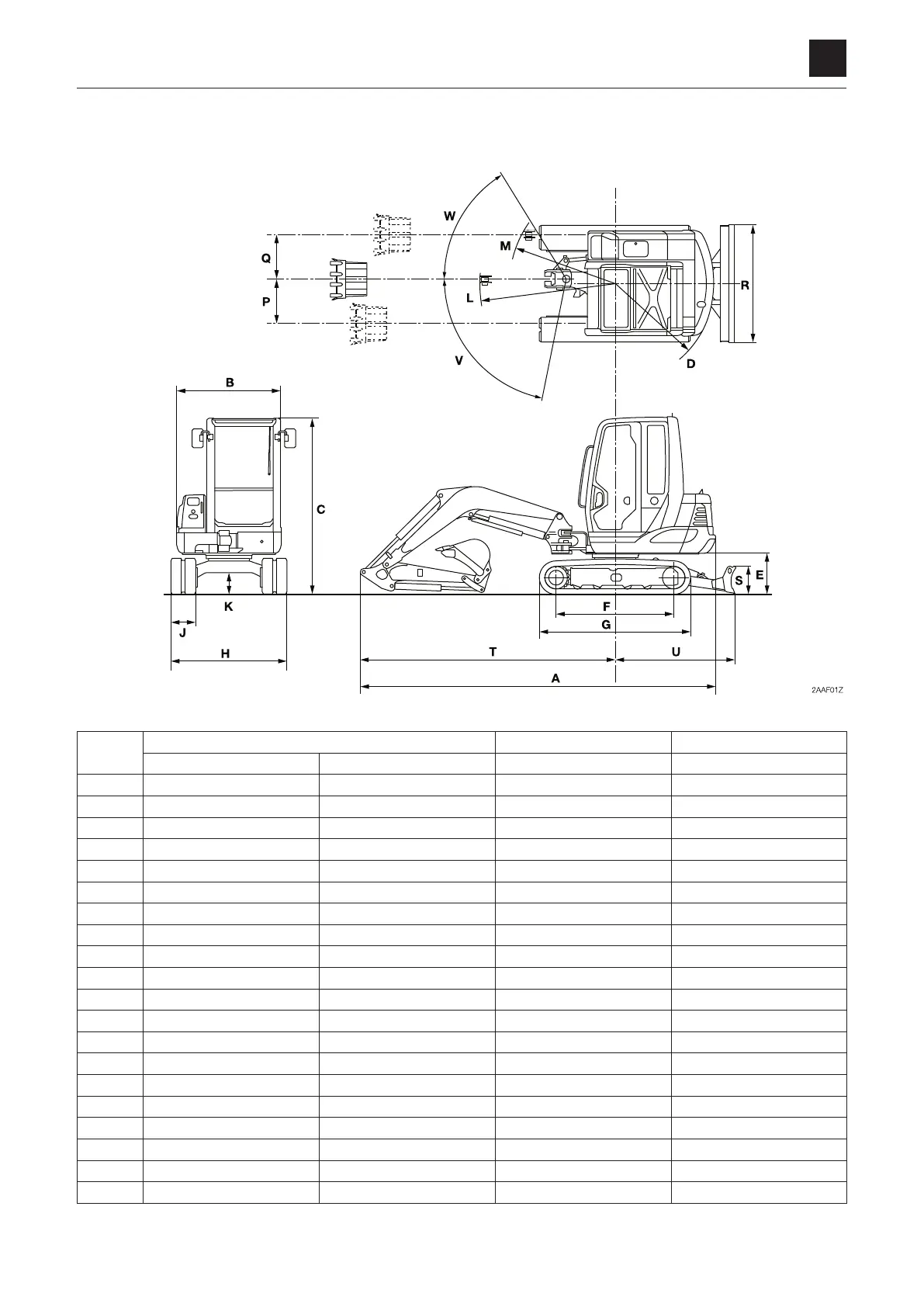

DIMENSIONAL DRAWING
Machine dimensions
DIMENSIONAL DRAWING
Unit: mm
Standard arm Middle arm Long arm
Rubber crawlers Steel crawlers Rubber crawlers Rubber crawlers
A 5470 5470 5510 5550
B 1690 1690 1690 1690
C 2515 2520 2515 2515
D 1435 1435 1435 1435
E 630 625 630 630
F 1985 1920 1985 1985
G 2500 2425 2500 2500
H 1840 1840 1840 1840
J 400 400 400 400
K 335 330 335 335
L 2170 2170 2195 2235
M 1680 1680 1705 1740
P 715 715 715 715
Q 710/705* 710/705* 710/705* 710/705*
R 1840 1840 1840 1840
S 430 430 430 430
T 4070 4070 4110 4150
U 1720 1720 1720 1720
V 80º/75º
* 80º/75º * 80º/75º * 80º/75º *
W 60º 60º 60º 60º
*
: Serial No. 125000295 or later
