4-78
4
CONTROL V
AL
VE
DISASSEMBL
Y AND ASSEMBL
Y

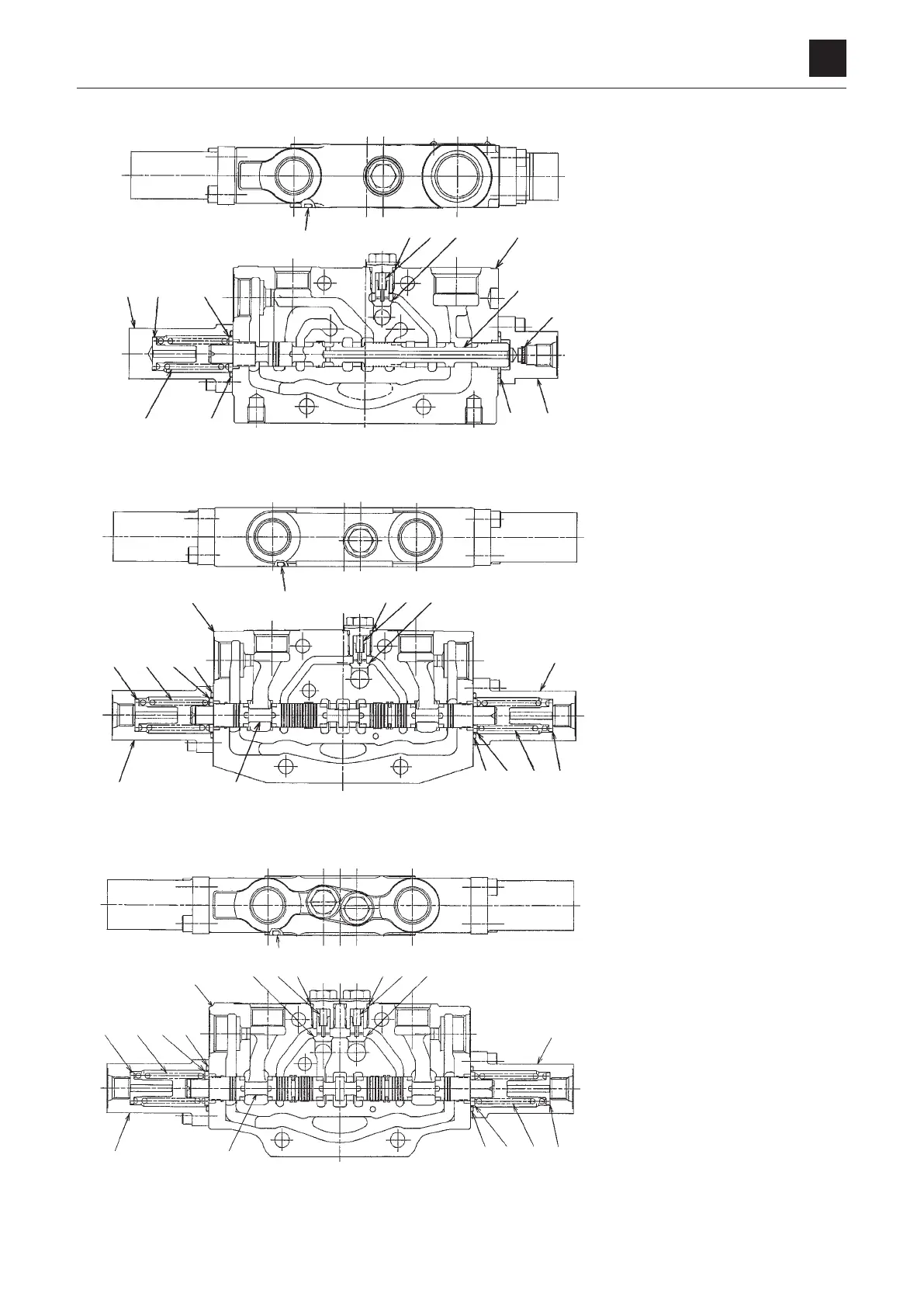

Switch valve
1.
Cover
2.
Spring holder
3.
Spring holder
4.
Spring
5.
O-ring
6.
Cover
7.
Filter
8.
Poppet
9.
Spring
10.
O-ring
11.
O-ring
12.
Housing
13.
Spool
1st auxiliary section
1.
Cover
2.
Spring holder
3.
Spring holder
4.
Spring
5.
Poppet
6.
Spring
7.
O-ring
8.
O-ring
9.
O-ring
10.
Housing
11.
Spool
1st auxiliary section (high flow)
1.
Cover
2.
Spring holder
3.
Spring holder
4.
Spring
5.
Poppet
6.
Spring
7.
O-ring
8.
O-ring
9.
O-ring
10.
Housing
11.
Spool
