Takeuchi TB 250 - Upper Frame Wiring; Wire Harness Wiring Diagram

2-37
2
WIRE HARNESS WIRING DIAGRAM
SERVICE DATA
WIRE HARNESS WIRING DIAGRAM

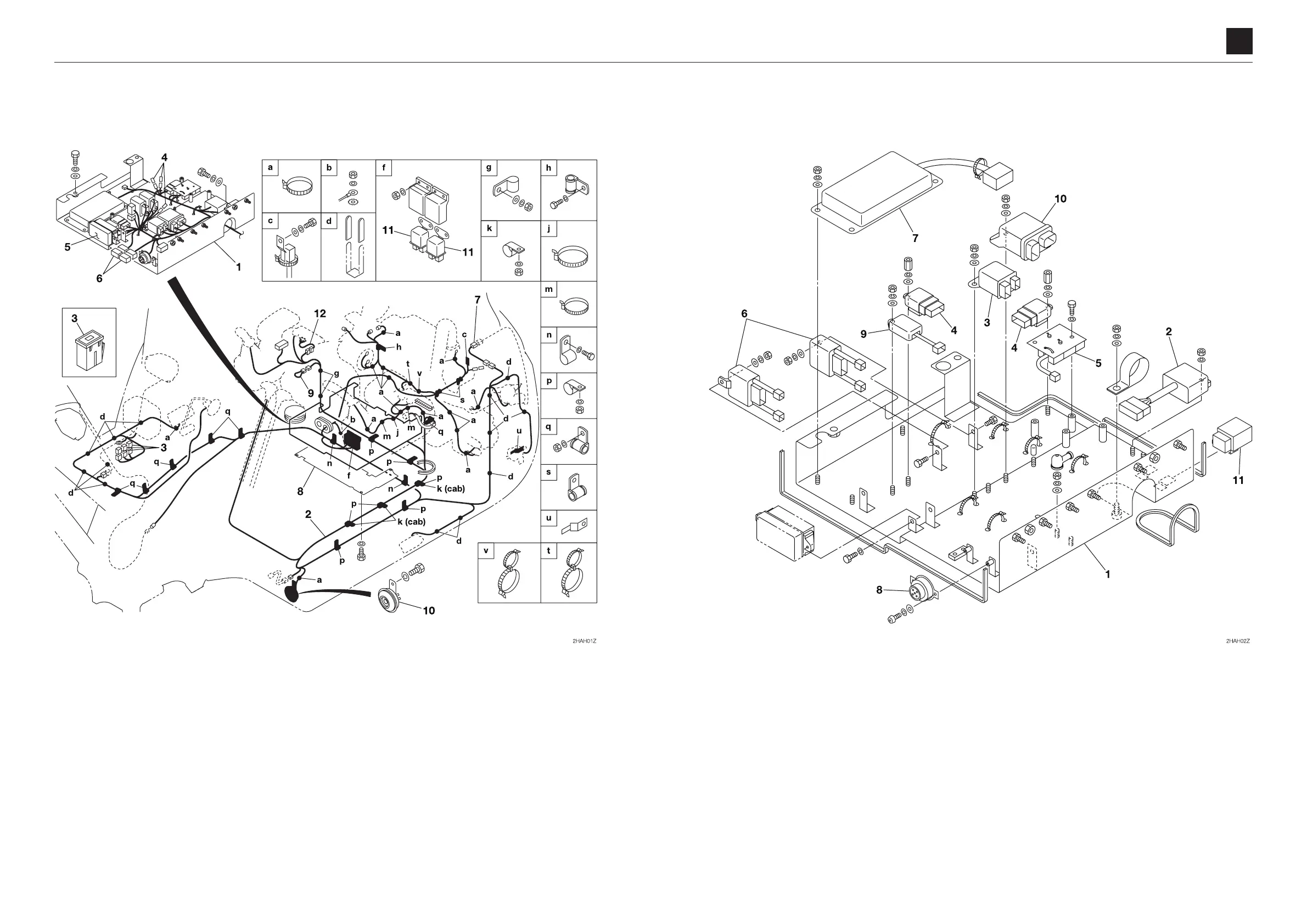

Upper frame wiring 1/2
1. Control unit
2. Wire harness (03942-26630)
3. Fusible link
4. Diode
5. Fuse box
6. Short connector
7. Wire harness (03742-17070)
8. Plate
9. Short connector
10. Horn
11. Relay
12. Wire harness (03742-05600)
1. Plate
2. Flip flop unit
3. Relay
4. Relay
5. Resistance
6. Relay
7. Controller
8. Buzzer
9. Timer
10. Safety relay
11. Diode unit
Upper frame wiring 2/2
Serial No. 125000001 to 125000849
