Takeuchi TB 250 - Page 51

2-38
2

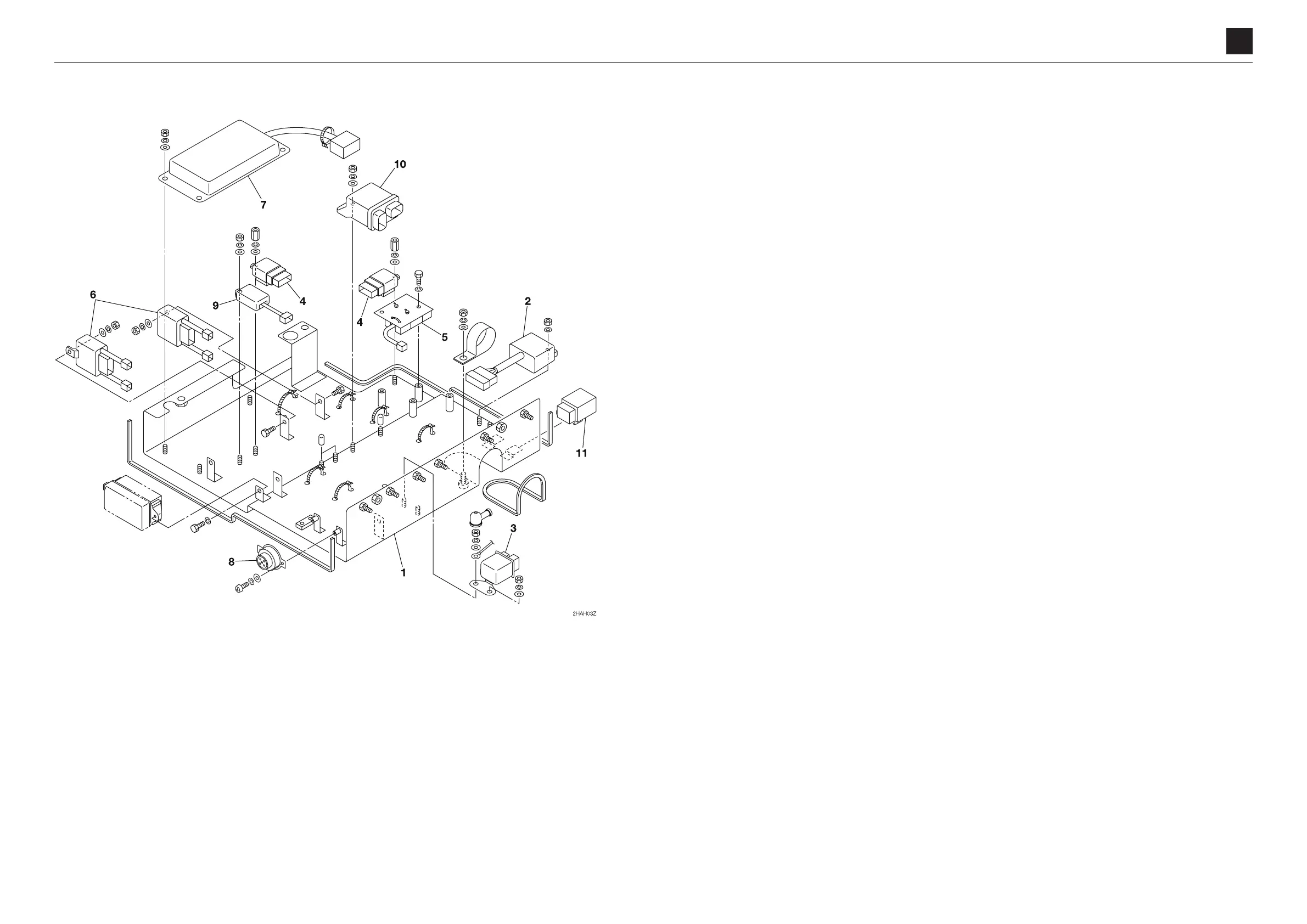

WIRE HARNESS WIRING DIAGRAM
SERVICE DATA
1. Plate
2. Flip flop unit
3. Relay
4. Relay
5. Resistance
6. Relay
7. Controller
8. Buzzer
9. Timer
10. Safety relay
11. Diode unit
Upper frame wiring 2/2
Serial No. 125000850 or later
