Takeuchi TB 250 - Hydraulic Pump Assignment Table

2-13
2
PERFORMANCE CRITERIA
SERVICE DATA
2DAA01Z
P1P2P3P4

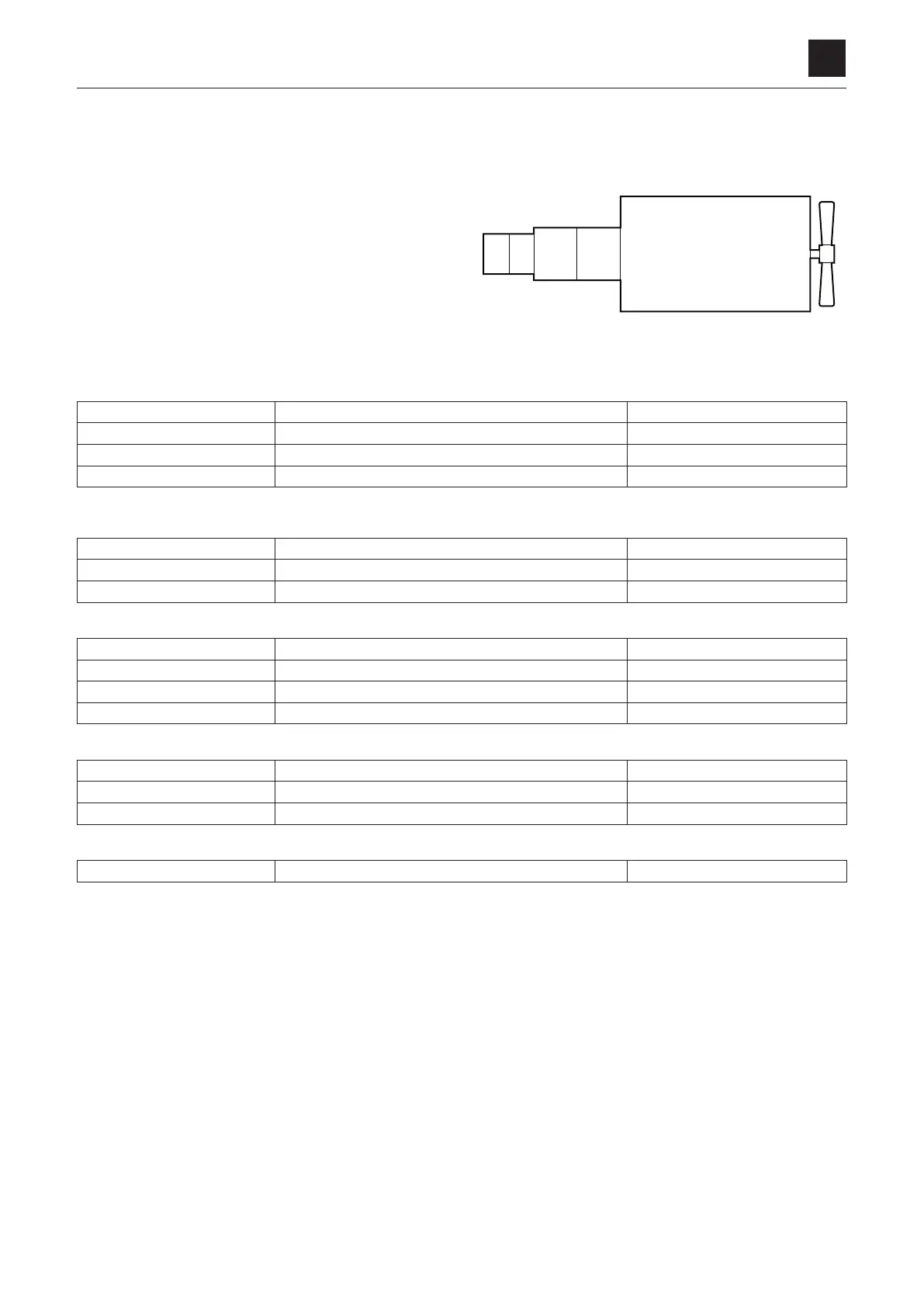

Hydraulic pump assignment table
P1 Right travel, Boom, Bucket 58.3 L/min
P2 Left travel, Arm, Swing, Auxiliary line 58.3 L/min
P3 Slew
, Dozer blade, Second auxiliary line 38.9 L/min
P4 Pilot pr
essure 10.8 L/min
Pump P1
Right travel Pressure: 21.0 MPa Test port P2
Boom Pr
essure: 21.0 MPa Test port P2
Bucket Pr
essure: 21.0 MPa Test port P2
Pump P2
Left travel Pressure: 21.0 MPa Test port P1
Arm Pr
essure: 21.0 MPa Test port P1
Swing Pr
essure: 21.0 MPa Test port P1
Auxiliary line Pr
essure: 21.0 MPa Test port P1
Pump P3
Slew Pressure: 19.6 MPa Test port P3
Dozer blade Pr
essure: 19.6 MPa Test port P3
Second auxiliary line Pr
essure: 19.6 MPa Test port P3
Pump P4
Pilot pressure Pressure: 3.4 MPa Test port P4
