4-38
4
CONTROL SYSTEM
DISASSEMBLY AND ASSEMBLY

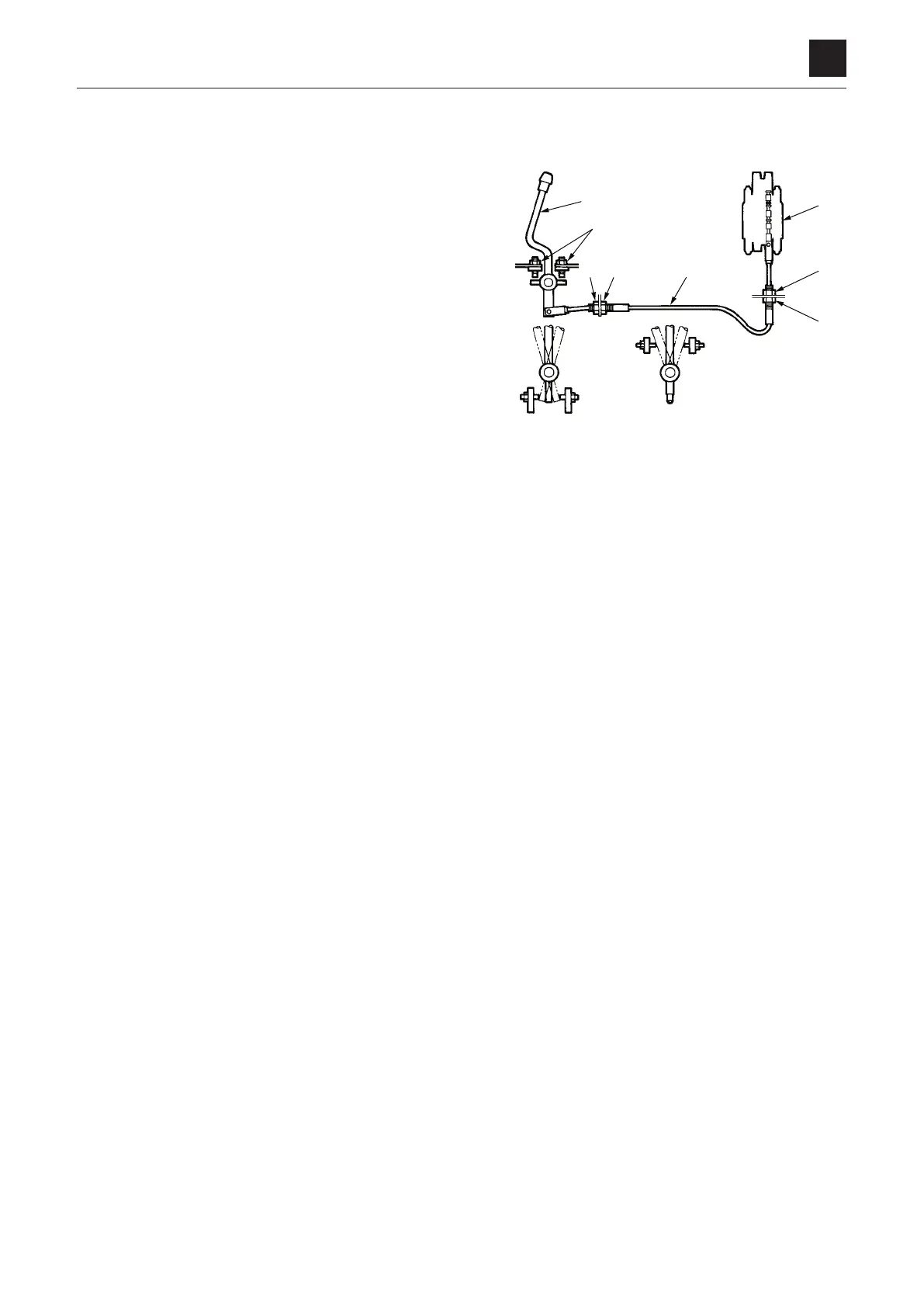

Adjusting the control cable
Adjust the lever stroke length by using the setscrew so that
it is long enough for the spool stroke on the control valve.
1. The control valve (1) spool should be in the neutral po-
sition.
2. Turn the nut (2) and position the lever (3) in the center
of the stroke, and then fasten the control cable (4) with
the nut.
3. Move the lever (3) and hold it at the stroke end of the
valve spool.
4. Install the setscrew (6).
