4-135
4
CYLINDERS
DISASSEMBLY AND ASSEMBLY
<Bucket cylinder, blade cylinder>

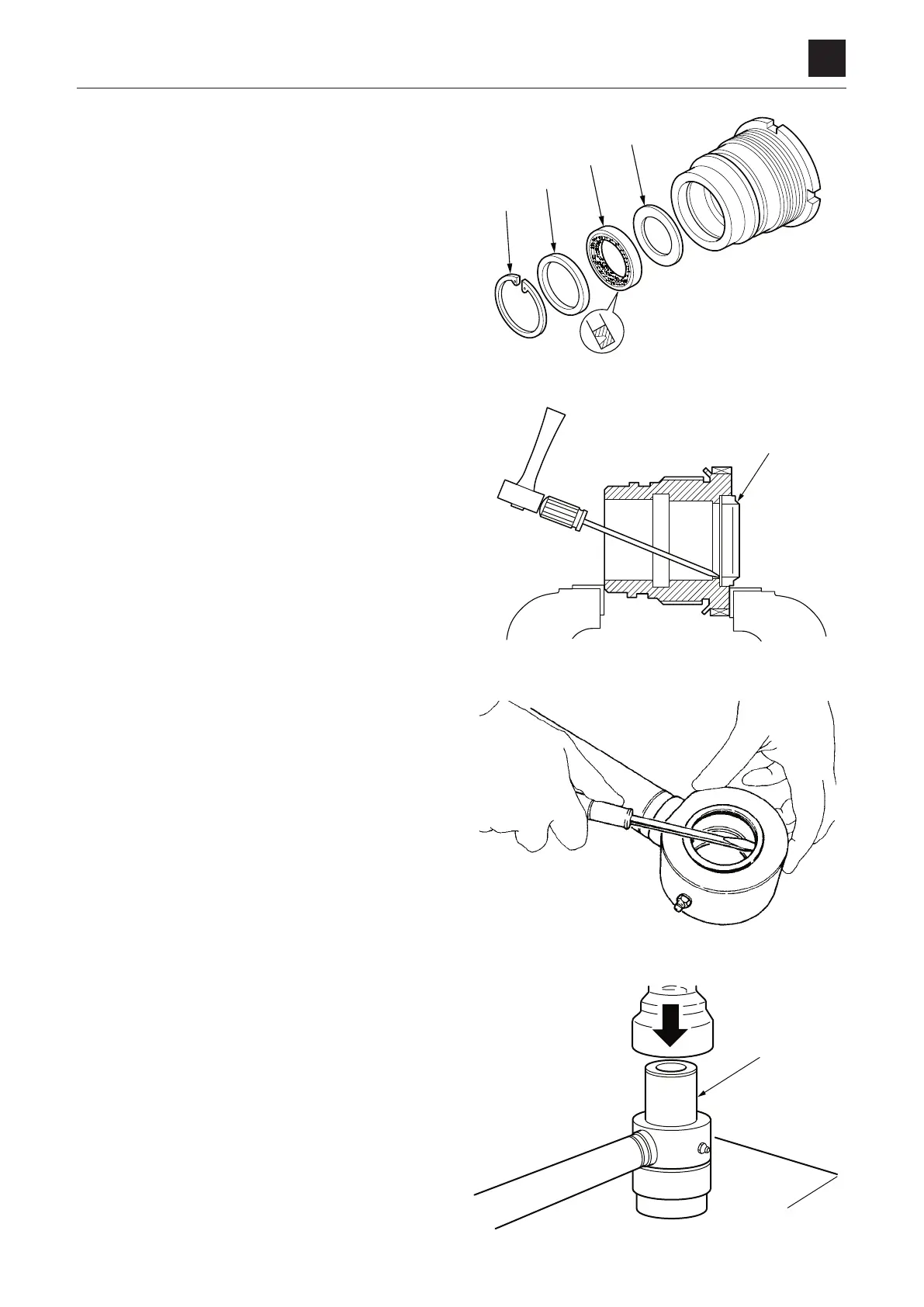

a. Remove the snap ring (24).
b. Remove the rod packing holder (25), the rod pack-
ing (22) and the backup ring (23).
3. Remove the dust seal (26).
• Tap alternately on several points around the inner
circumference of the metal ring, gradually pushing
the seal out of the groove.
Clevis
1. Remove the dust seals from the tube and the piston
rod clevis.
2. Remove the bushing.
• Pull out the bushing by using a press and the sup-
porting metal (27)
To Next Page
