Takeuchi TB 250 - Arm Section; Bucket Section; Dozer Blade Section

4-77
4

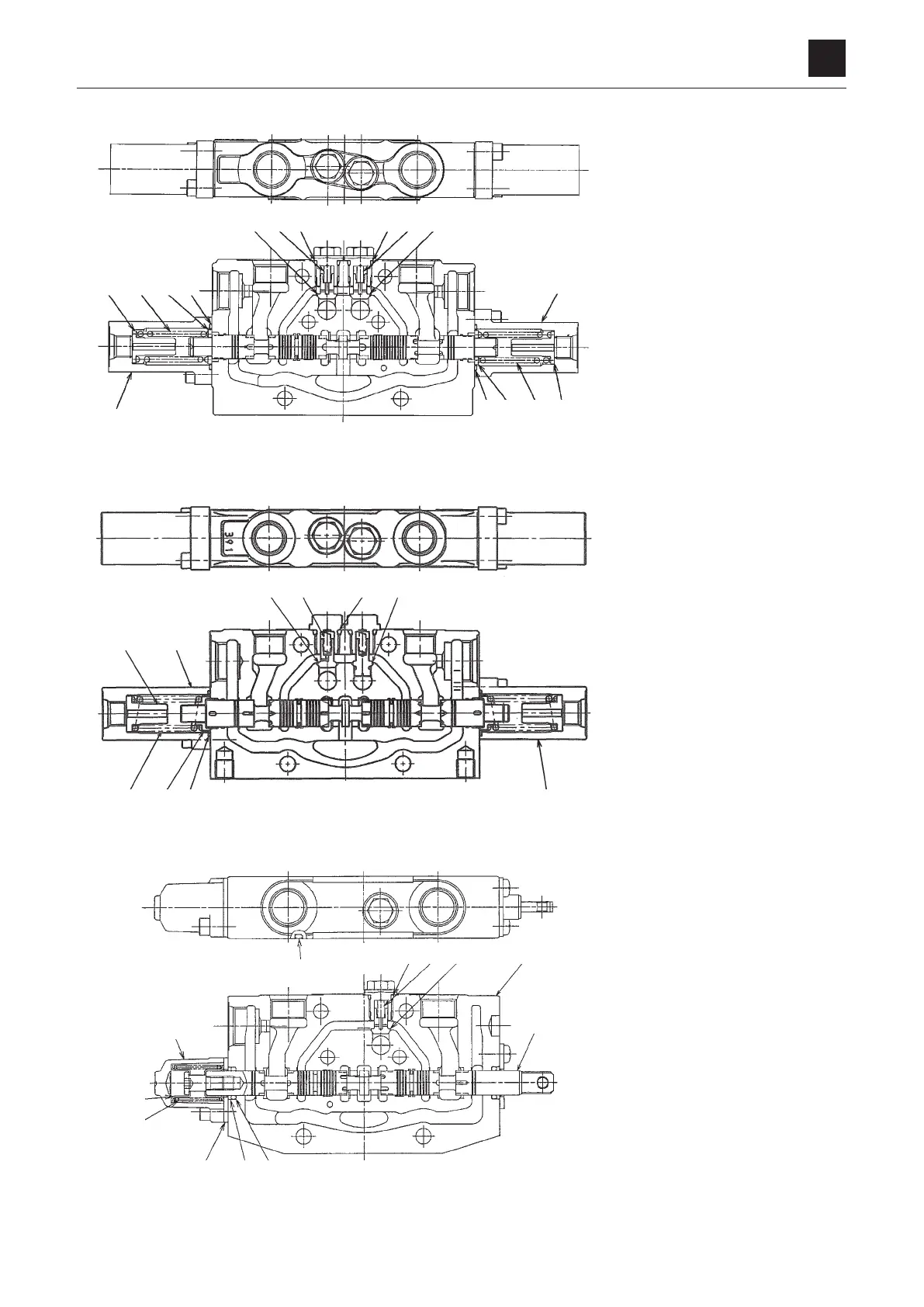

CONTROL VALVE
DISASSEMBLY AND ASSEMBLY
Arm section
1. Spring holder
2. Spring
3. Spring holder
4. Cover
5. O-ring
6. Poppet
7. Spring
8. O-ring
Bucket section

 
 
   
 

1. Spring holder
2. Spring
3. Spring holder
4. Cover
5. O-ring
6. Cover
7. Poppet
8. Spring
9. O-ring
10. Poppet
Dozer blade section
1. O-ring
2. Wiper
3. Seal holder
4. Spring holder
5. Spring
6. Cover
7. Poppet
8. Spring
9. O-ring
10. O-ring
11. Housing
12. Spool

  
 

  










