Takeuchi TB 250 - Page 172

4-67
4
HYDRAULIC PUMP
DISASSEMBLY AND ASSEMBLY

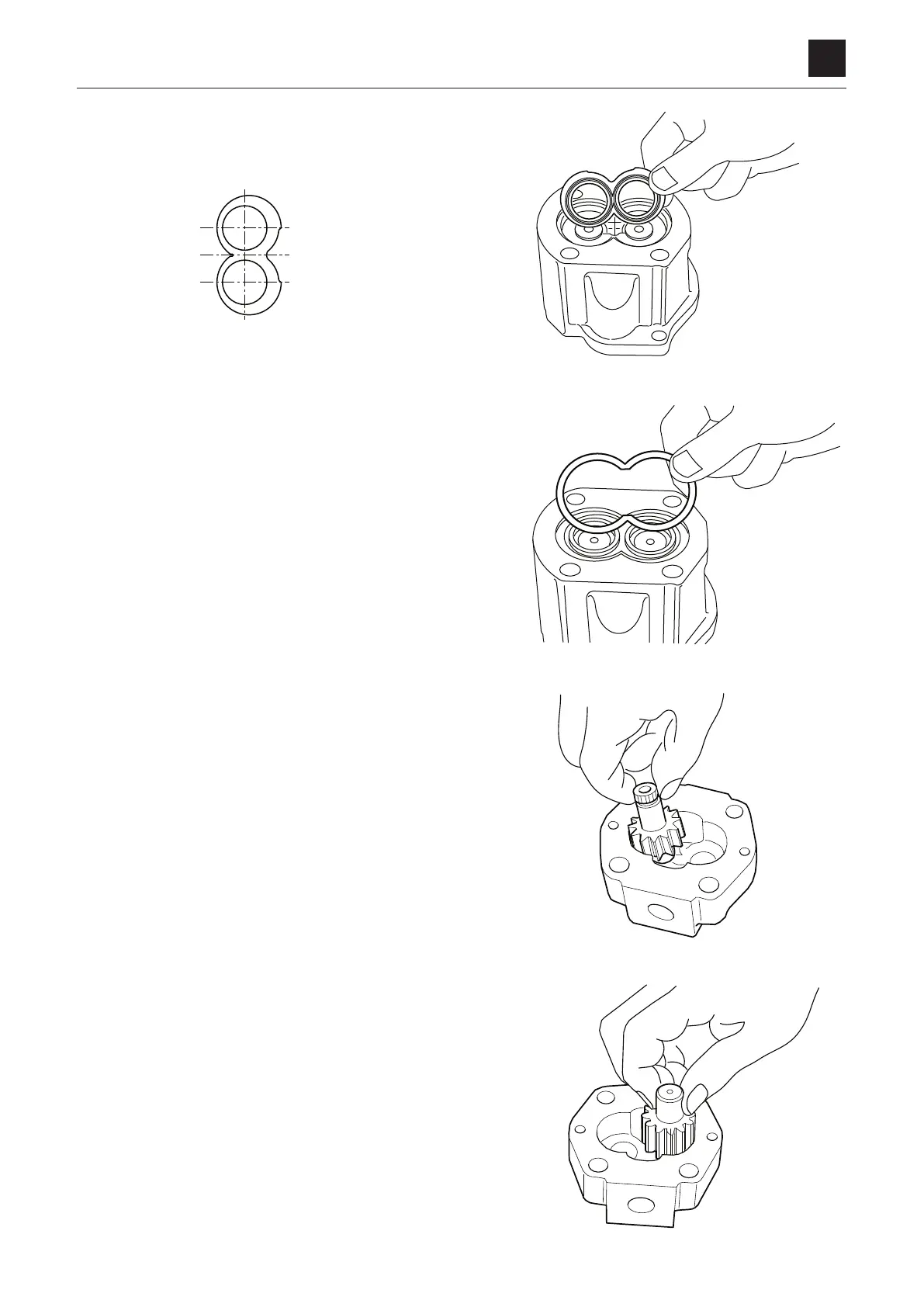

d. Install the plate that was set as above on the hous-
ing.
• Be sure to install the plate in the correct direc-
tion.
A: Discharge side
B: Suction side
e.
Install the seal ring.
18. Assemble the pump P4.
a. Install the drive gear on the housing.
b. Install the driven gear on the housing.







