4-69
4
HYDRAULIC PUMP
DISASSEMBLY AND ASSEMBLY

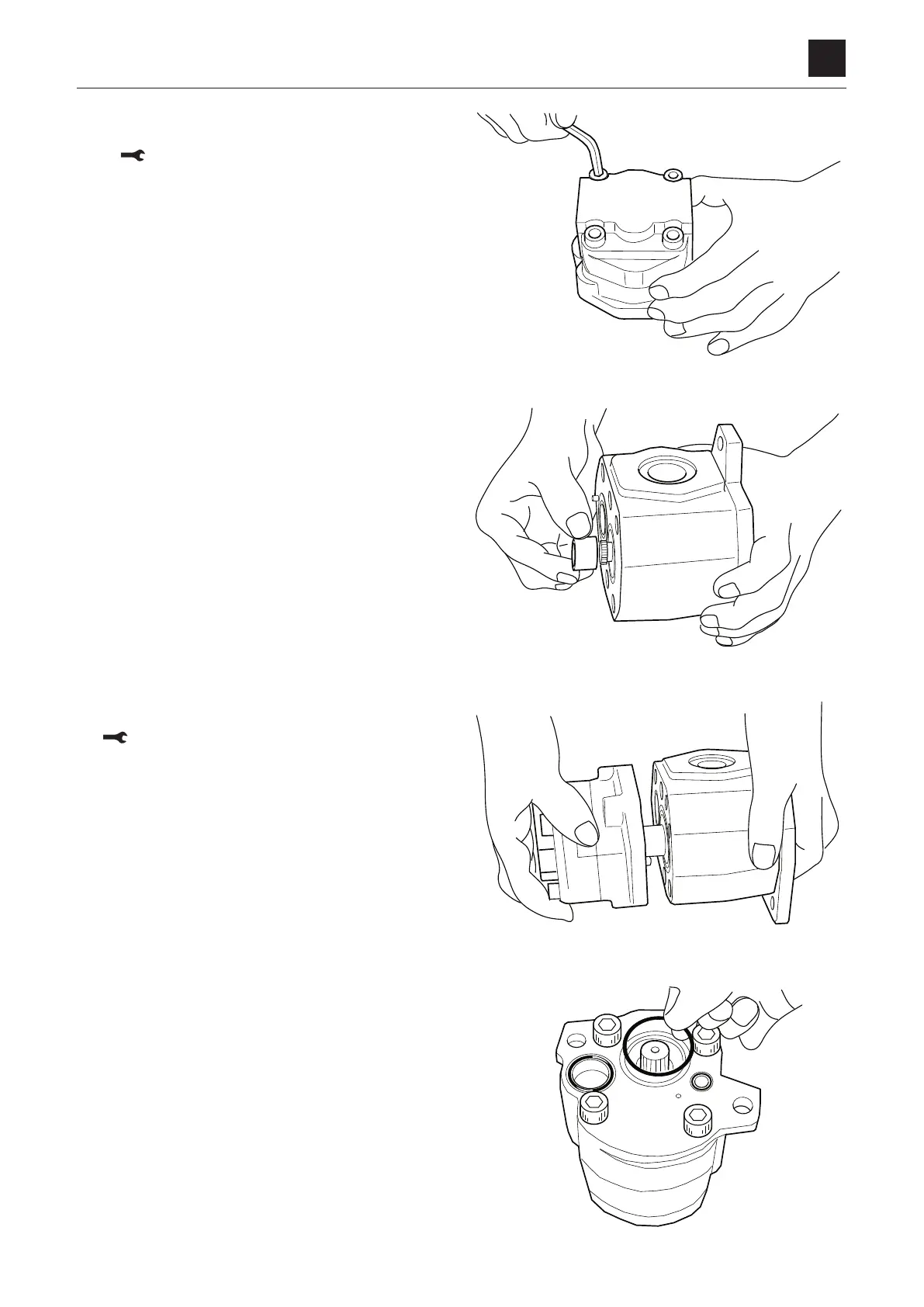

g. Secure the frame and housing using the cap
screws.
Cap screw: 28 to 35 N·m
h. Fit the two pins to the frame and install the coupling
on the shaft end of the pump P3 side.
19. Connect the pumps P3 and P4 and secure them using
the cap screws.
Cap screw: 55 to 69 N·m
20. Install the O-ring on the frame.




