4-71
4
HYDRAULIC PUMP
DISASSEMBLY AND ASSEMBLY

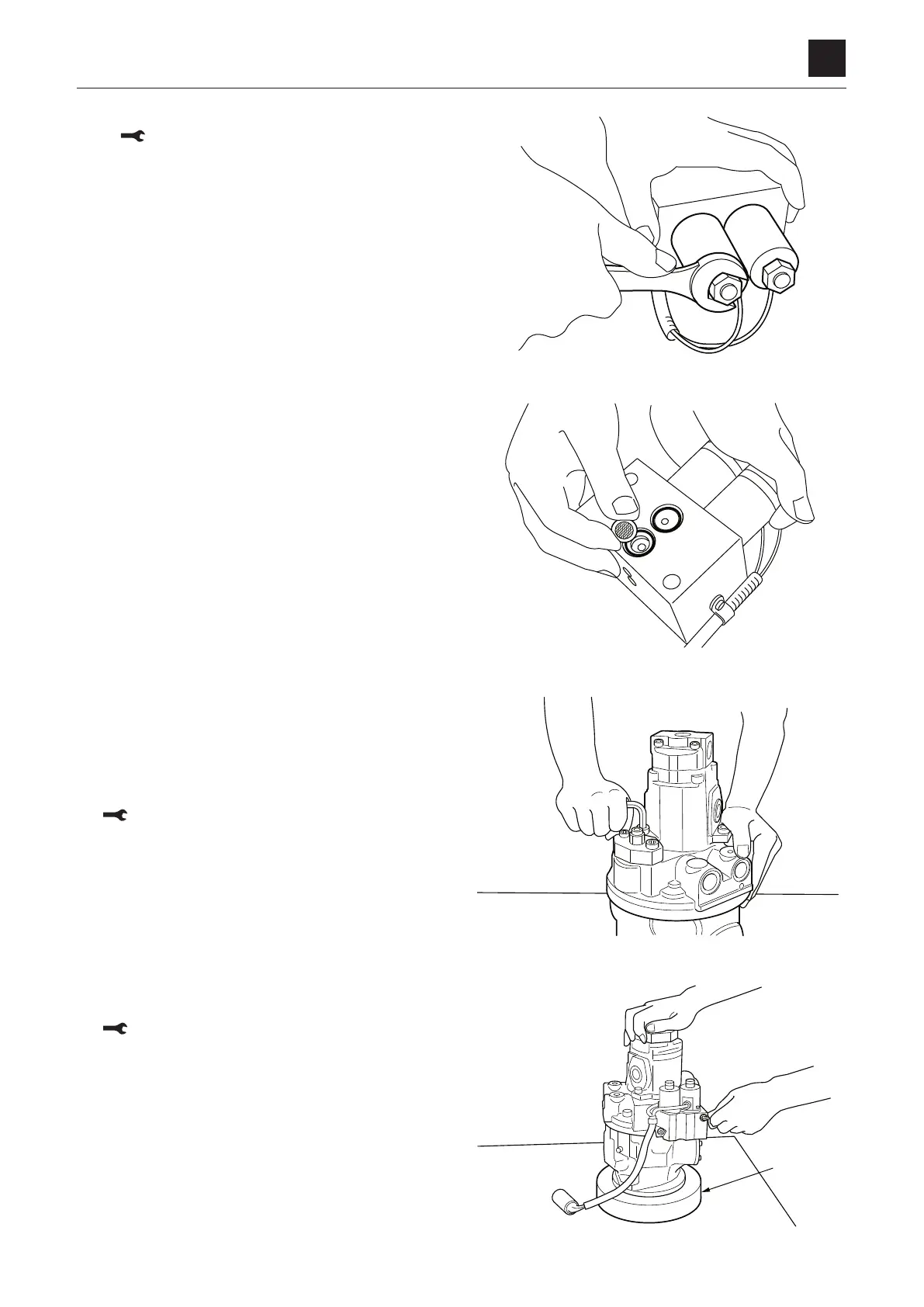

e. Secure the solenoids using the nuts.
Nut: 4.9 N·m
f. Install the O-rings and the filter on the body.
22. Connect the main pump and the gear pump and se-
cur
e them using the cap screws.
• Hold the pump upright with the shaft side on the
bottom and place the pump onto the jig A so that
the shaft end does not come in contact with the
working table surface.
Cap screw: 55 to 69 N·m
23. Install the solenoid valve on the pump and secure the
valve using the cap screws.
Cap screw: 28 to 35 N·m
