4-99
4
PILOT VALVE (AUXILIARY)
DISASSEMBLY AND ASSEMBLY

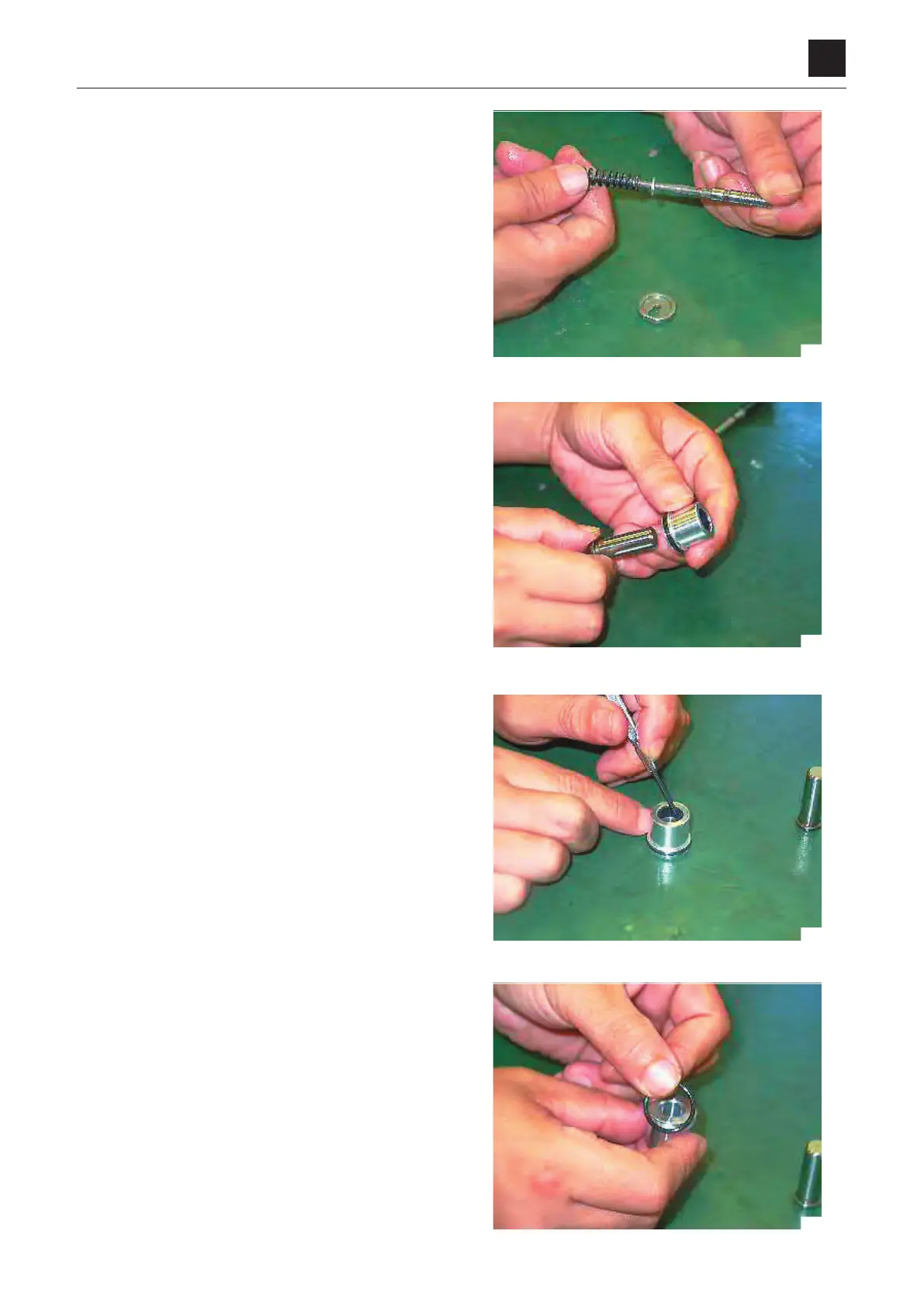

12. Separate the spool, secondary pressure spring, shim
and washer.
• When assembling, use the same set of parts as
above.
• The washer is for adjusting the preset value of the
secondary pressure spring, and its thickness differs
for each spool assembly. In some cases this washer
is omitted.
13.
Remove the push rod from the plug.
14. Remove the packing from the plug.
• Use a small flat head screwdriver or the like for re-
moval.
• Take care not to scratch the inner surface of the
plug.
15.
Remove the O-ring from the plug.
To Next Page
