4-141
4
CYLINDERS
DISASSEMBLY AND ASSEMBLY

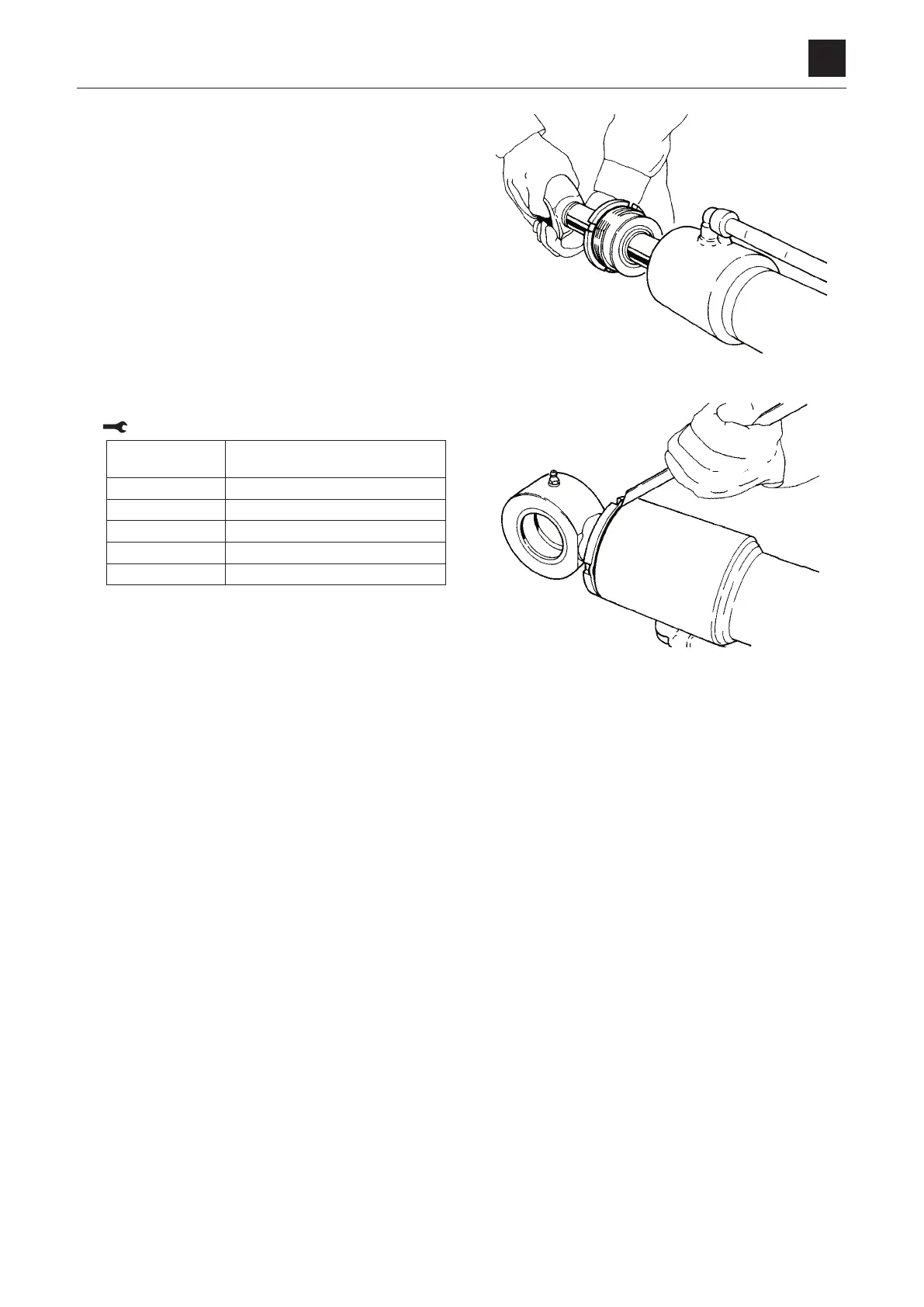

Cylinder assembly
1. Secure the tube in a level position, and insert the piston
rod assembly into the tube.
• When inserting, align the center of the piston rod
with the center of the tube. Insert the assembly
straight so as not to damage the seal.
2. Tighten the rod cover.
Rod cover
3. Bend down the lock rib on the tube and fit it into the
notch of the rod cover to lock it.
4LAA35Z
4LAA36Z
Cylinders
Rod cover
(N·m)
Boom 647
Arm 530
Bucket ––
Blade ––
Swing 363
