Takeuchi TB153FR User Manual

75
OPERATION
Machine Operation

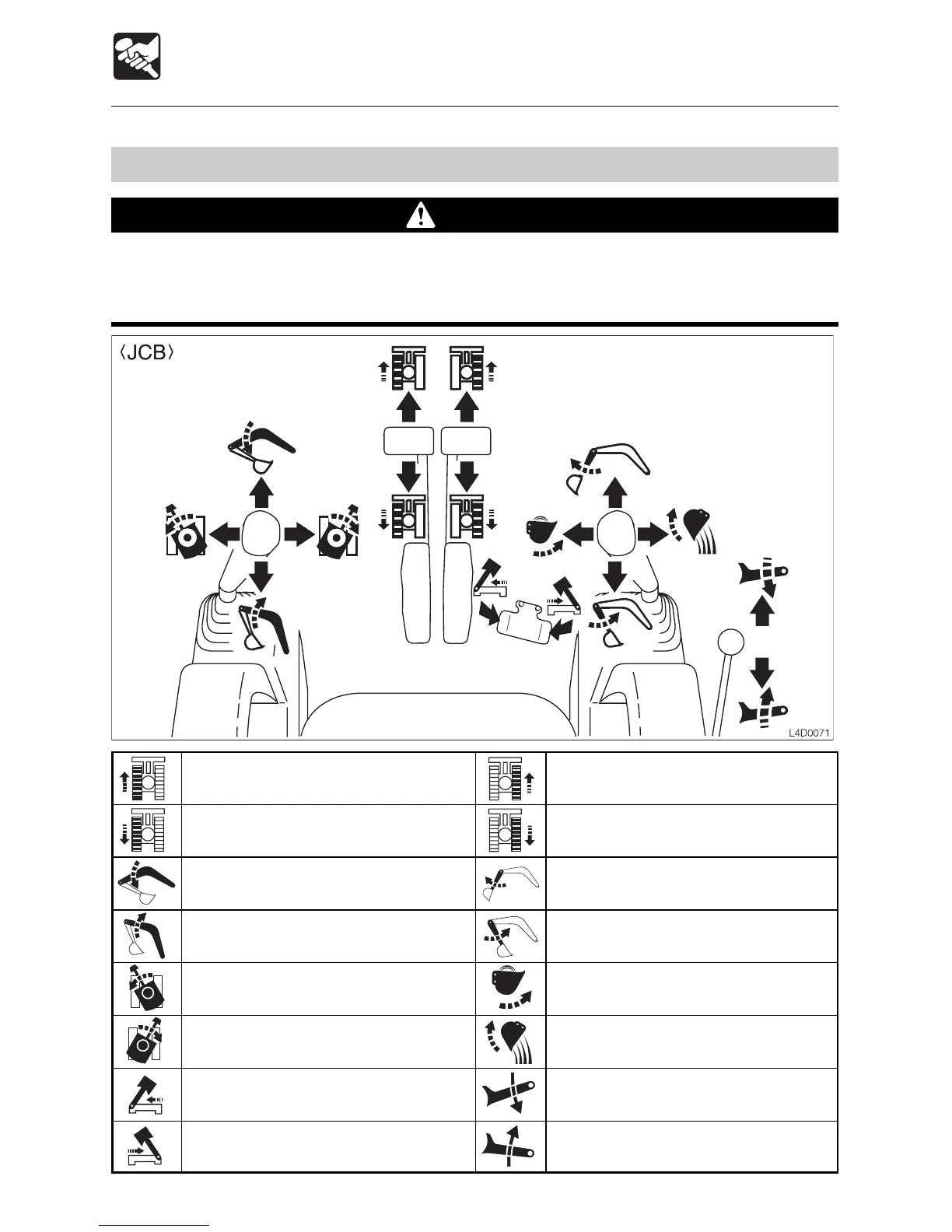

Lever Pattern (JCB Pattern)
WARNING
¡¡
¡¡
¡Be careful to check which pattern of lever control arrangement you are operating
with before beginning operations.
¡¡
¡¡
¡The explanations in this manual are for the ISO pattern.
Left Crawler Forward
Left Crawler Reverse
Boom Lower
Boom Raise
Upperstructure Left Slew
Upperstructure Right Slew
Boom Offset Left
Boom Offset Right
Right Crawler Forward
Right Crawler Reverse
Arm Out
Arm In
Bucket Load
Bucket Dump
Dozer Blade Lower
Dozer Blade Raise

Takeuchi TB153FR Specifications

General

Engine Make	Yanmar
Engine Model	4TNV88
Tail Swing Type	Zero Tail Swing
Maximum Reach	5, 570 mm
Max Reach Ground Level	5, 570 mm
Transport Width	2, 000 mm
Transport Height	2, 600 mm
