Machine Overview Model: EV8650
Page 4 of 62 TP05413002 Rev. 03
Copyright © 2009 by Talaris Ltd., Basingstoke (UK)

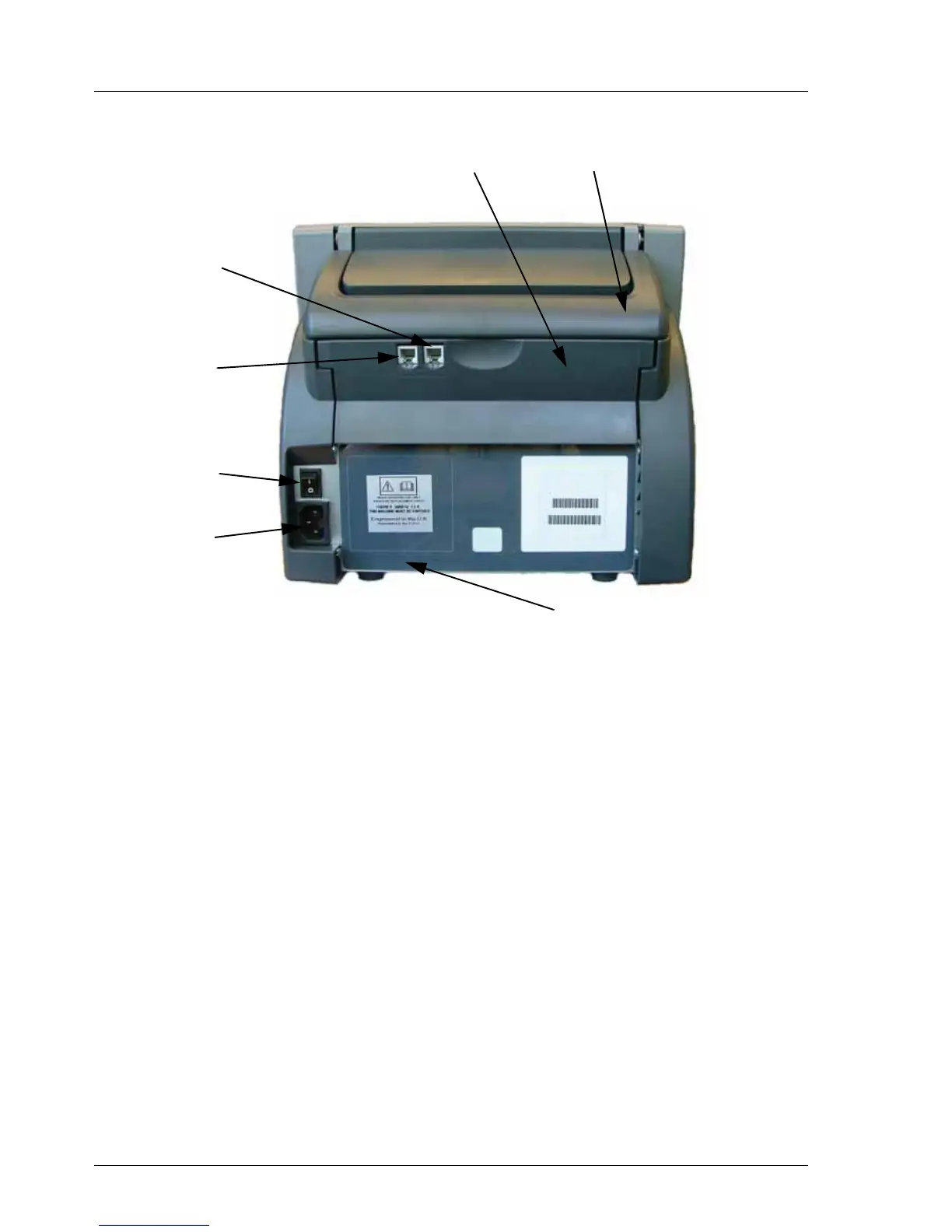

2.3 Machine Overview (Rear View)
1 Detector Box. Tilts backwards for note access.
2 Fold Away Carry Handle. For carrying and transporting.
3 Identification Label. For model and serial number.
4 Mains Input Connection. For connecting the machine to the Mains Supply.
5 On / Off Switch. For switching the machine on and off.
6 RS232 Port Channel 1. For connection to a computer or printer.
7 RS232 Port Channel 2. For connection to a printer - SMDS and 3D/IR/UV
only.
