Model: EV8650 Machine Overview
TP05413002 Rev. 03 Page 7 of 62
Copyright © 2009 by Talaris Ltd., Basingstoke (UK)
2.6 Feed Gap Adjustment
Feed gap adjustment is required for the following reasons.
• The counting of new or mint condition notes.
• The counting of thin or poor condition notes.
• The counting of average condition notes.
The higher the setting (i.e. 4) the larger the gap.
The lower the setting (i.e. 2) the smaller the gap.
To set to an average note condition feedgap:
First turn the rubber rollers until the ridged portion is uppermost. Now move the feedgap
adjuster wheel downwards one click at a time until some resistance is felt when the
ridged portion of the rubber roller is moved gently backwards and forwards by hand. Now
move the feedgap adjuster wheel upwards 3 clicks.
Old notes may require a larger feed gap. New notes may require a smaller feed gap.

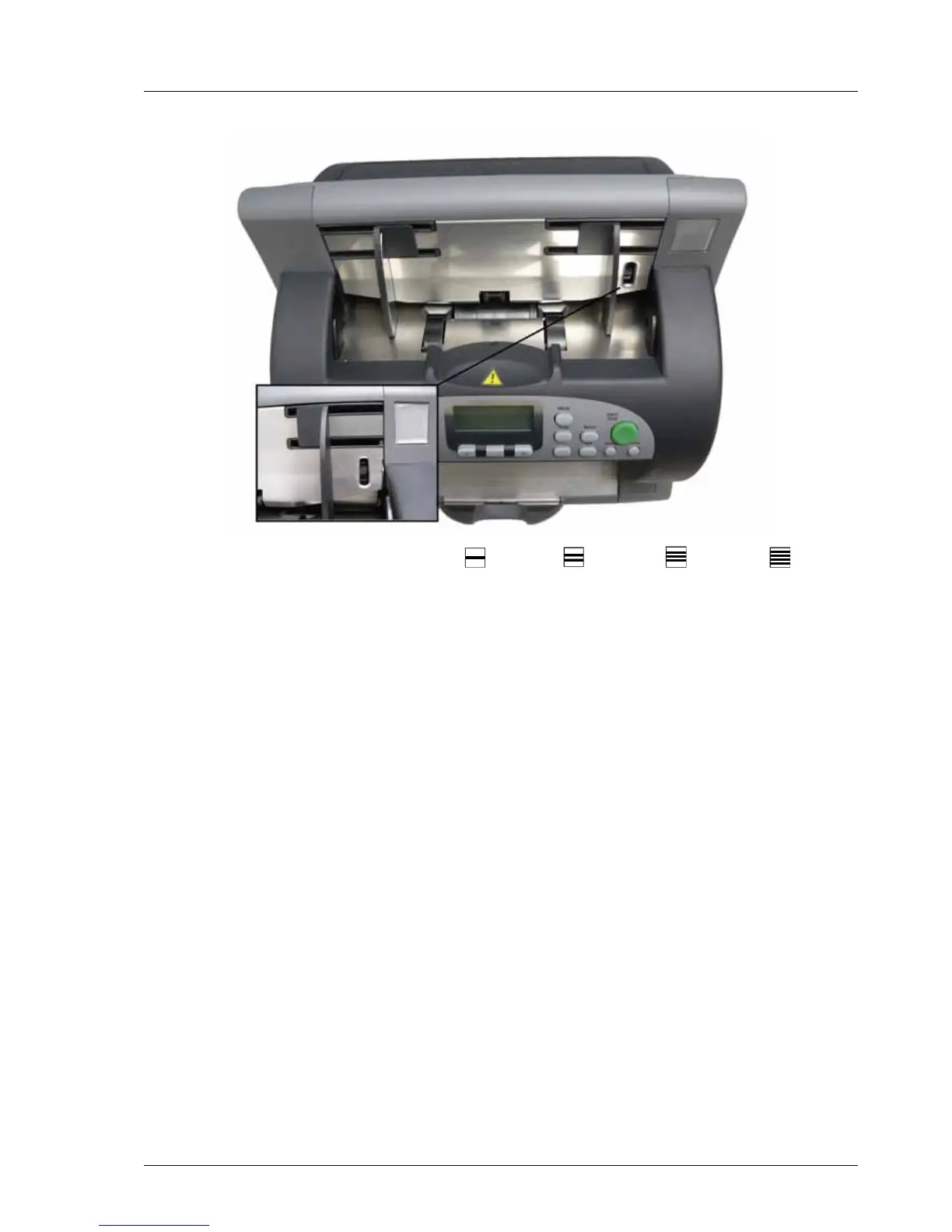

The adjuster wheel is
graduated with lines.
1 2 3 4
To Next Page
