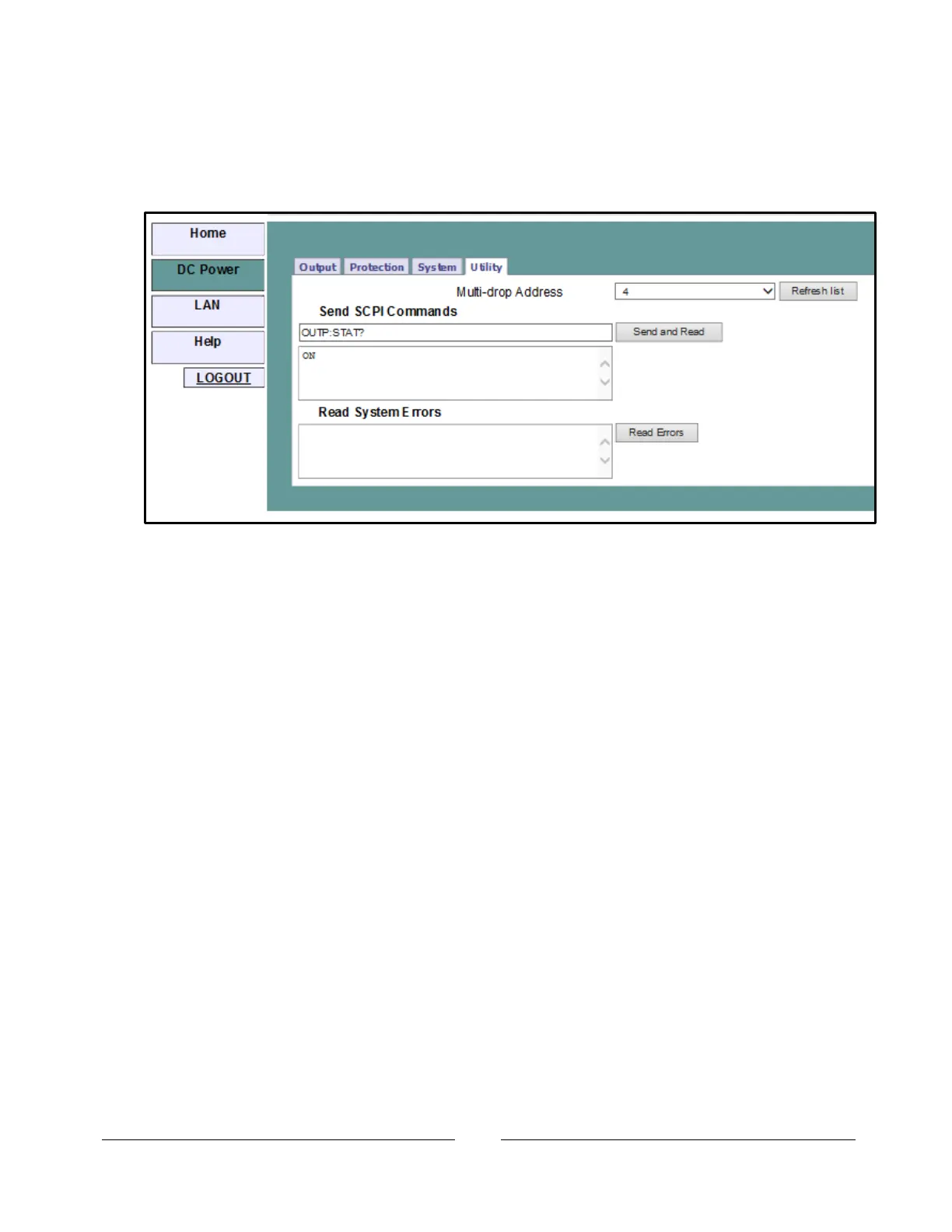

6.5.4. DC Power Utility Page
This page is used to send any SCPI command and see the response. It is a learning
tool for SCPI operation and it allows commands which are otherwise not on the web
pages. The SCPI commands are described in section 11.
You must log-in as ‘admin’ to send SCPI commands (see section 6.4 to log in)
Type any SCPI message into the top text box. Then click the “Send and Read”
button.
For commands, there is no response.
For queries, the response is shown in the middle text box
You may read any System Error message by clicking the “Read Errors” button. The
error message (or “No error”) will show in the bottom text box, otherwise see section
11.8.1 and section 13.
