132

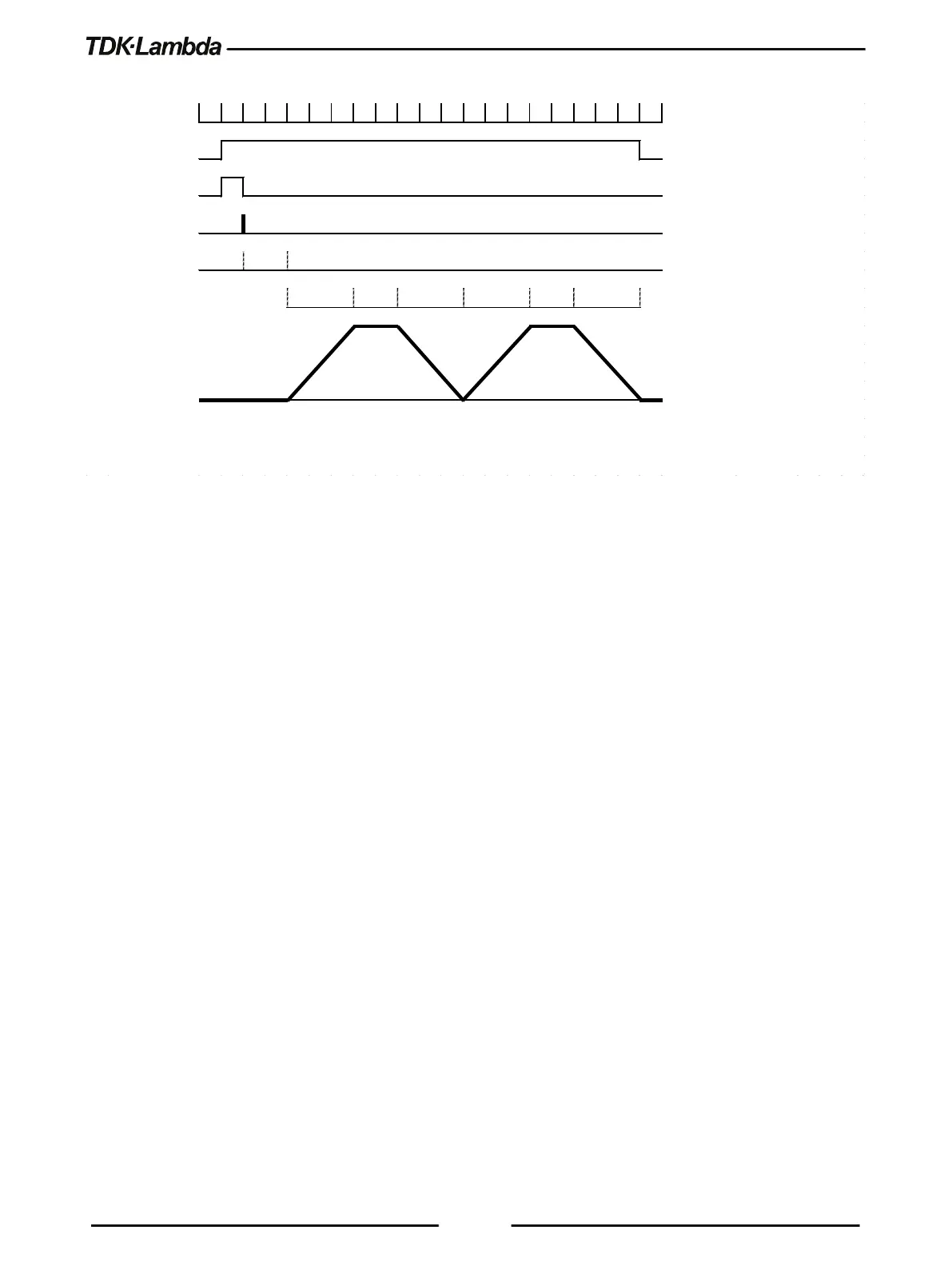

Figure 5–4: WAVE Mode Sequence Example
5.1.3 Sequencer Functions
5.1.3.1 Counter
Defines the number of performed iterations. The Counter can be set to 1 ~ 9999. Any number
above 9999 sets the number of iterations to infinity. Counter setting is available via the
communication command [PROGram]:COUNter <NR1>|INFinity.
5.1.3.2 Dwell
Defines the time of a specific value in the LIST mode to remain in effect. Dwell range is 1mSec ~
36 hours, in steps of one milli-second. Dwell setting is available via the communication command
[PROGram]:LIST:DWELl <NRf+>,{<NRf+>}.
5.1.3.3 Time
Defines the time of each slope between 2 points in the WAVE mode. Time range is 1mSec ~ 36
hours, in steps of one milli-second. Time setting is available via the communication command
[PROGram]:WAVE:TIME <NRf+>,{<NRf+>}.
5.1.3.4 Load
Load a sequence from a memory cell, previously stored by the STOR command. Load function is
available via the Front Panel menu (refer to section 1.8) or via the communication command
[PROGram]:LOAD <NR1>.
5.1.3.5 Store
Store a sequence into a memory cell. Up to four sequences of 100 points each can be stored.
Store function is available via the communication command [PROGram]:STORe <NR1> (refer to
section 1.8).
0.01s ec
Trig Initated
INIT:IMM
Trigger Wait
Tri gger Event
Trigger Delay TRIG:DEL 0.02
Time
WAVE:TIME 0.03,0.02,0.03
WAVE:VOLT 10,10,0
OUTPUT
VOLTAGE
COUN 2
INIT:CONT 0
STEP AUTO
0.03s
0.02s
0.03s
0.02s
0.03s
0.02s
0.03s
