170
7.9

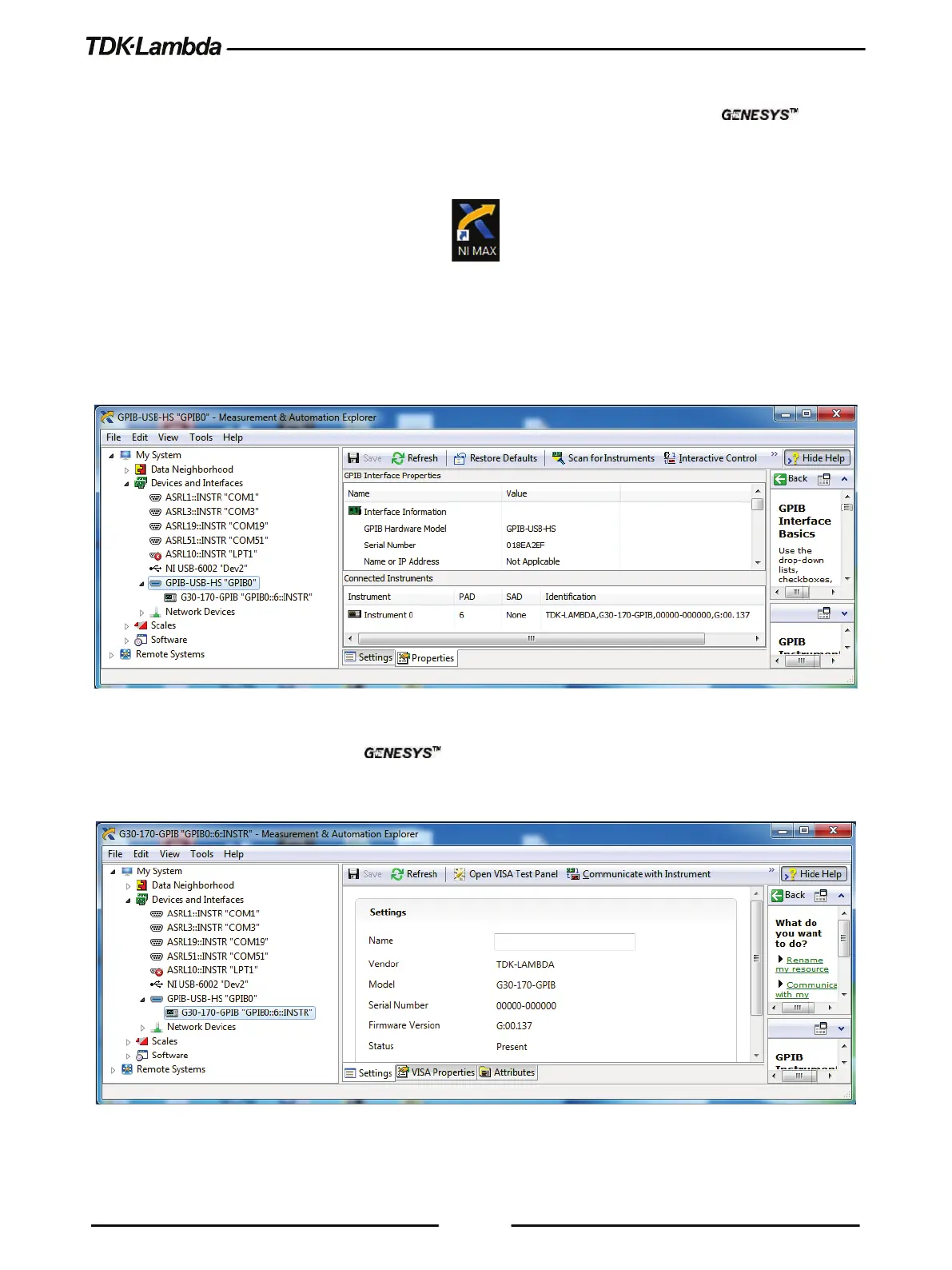

Communication Example
This section provides an example of how to communicate with the IEEE option power
supply using the National Instruments™ MAX application.
1. Run the National Instruments™ MAX (Measurement & Automation Explorer).
Figure 7–3: National Instruments™ MAX – Desktop Icon
2. On the side tree, expand My System and select Devices and Interfaces -> “GPIB0”.
3. In the GPIB Explorer toolbar, click Scan for Instruments. Refer to Figure 7–4.
Figure 7–4: Scan for Instruments
4. On the side tree, select instrument (i.e. G30-170-GPIB) and review the device
settings. Refer to Figure 7–5.
Figure 7–5: Instrument Properties
