TDK-Lambda GH10-100 - Blank Front Panel

7
1.4 Blank Front Panel
Refer to Figure 1–3 and Table 1-3 for description of the Blank Front Panel controls and Indicators.

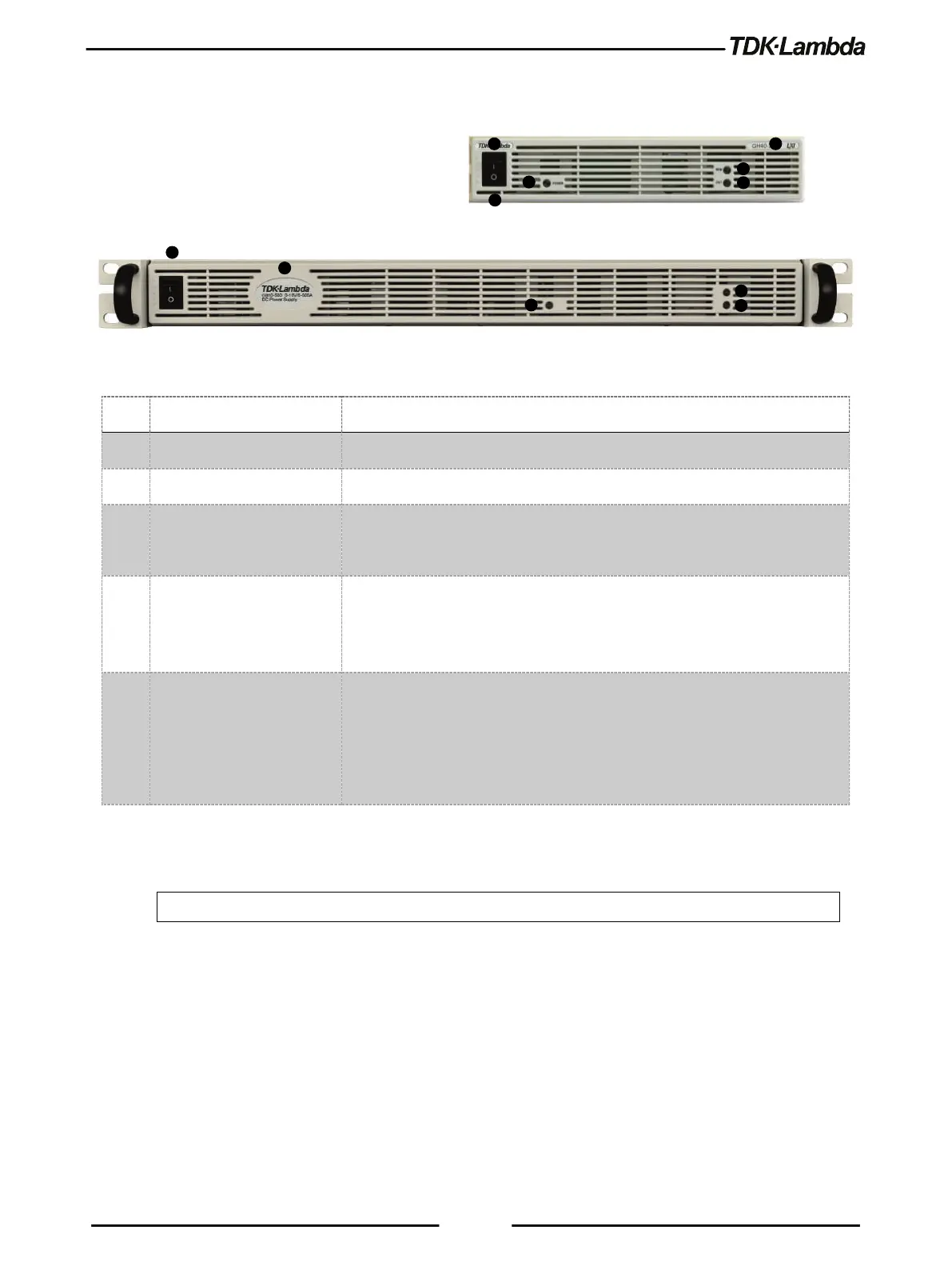

Figure 1–3: Blank Front Panel Controls
No.
Connection
Description
1
Power Switch
POWER ON/OFF control.
2
Power Supply Model
Model, Voltage & Current Identifier.
3 Power LED Power supply ON/OFF status LED.
Green LED lights when power supply is ON (Power Switch ON).
4 REM LED REMOTE status LED.
Green LED lights if power supply is controlled by a remote communication
(RS232/485, USB, LAN, OPTional).
5 OUT LED Output ON/OFF status LED.
Green LED lights when DC Output is enabled.
Red LED blinks in case of an alarm. Refer to Section 2.9 Alarms and
Protective Functions.
Table 1-3: Blank Front Panel Controls
NOTE
Refer to section 1.9
for basic operation of Blank Front Panel power supply.
1
2
3
4
5
POWER
REM
OUT
1
2
2
3
4
5
