10
Table 1: AC
Power Supply
Ratings
Rating Value
Voltage 100 -
120V
Current 0.5A
Frequency 60 Hz
13. Remove the center screw from the wall outlet.

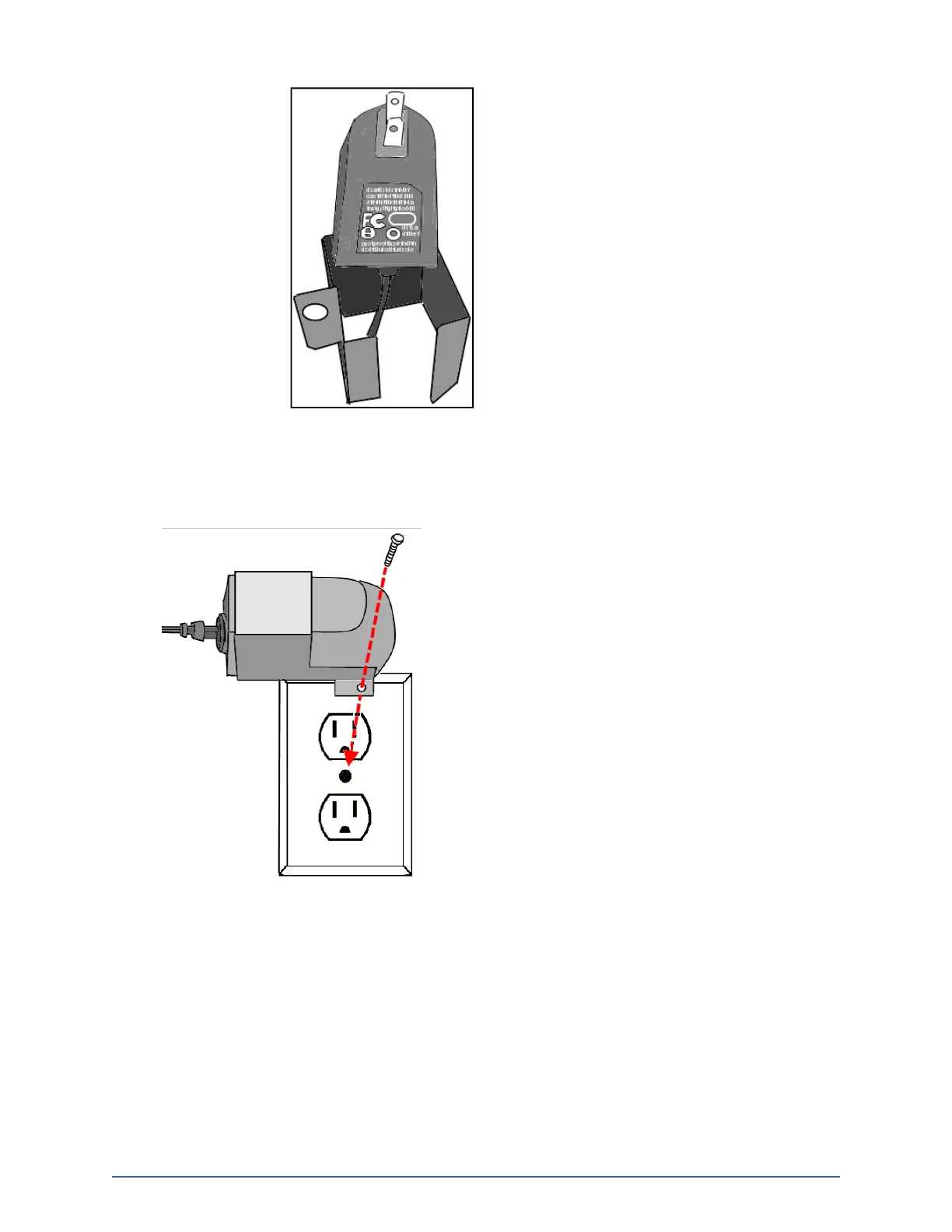

14. Plug the TouchScreen’s AC adapter into the TOP plug of the wall outlet, and replace the center
screw through the bracket hole.
After a few seconds, the Installation Welcome screen is displayed on the TouchScreen.
Home System Installation Guide
