Installing the Security System

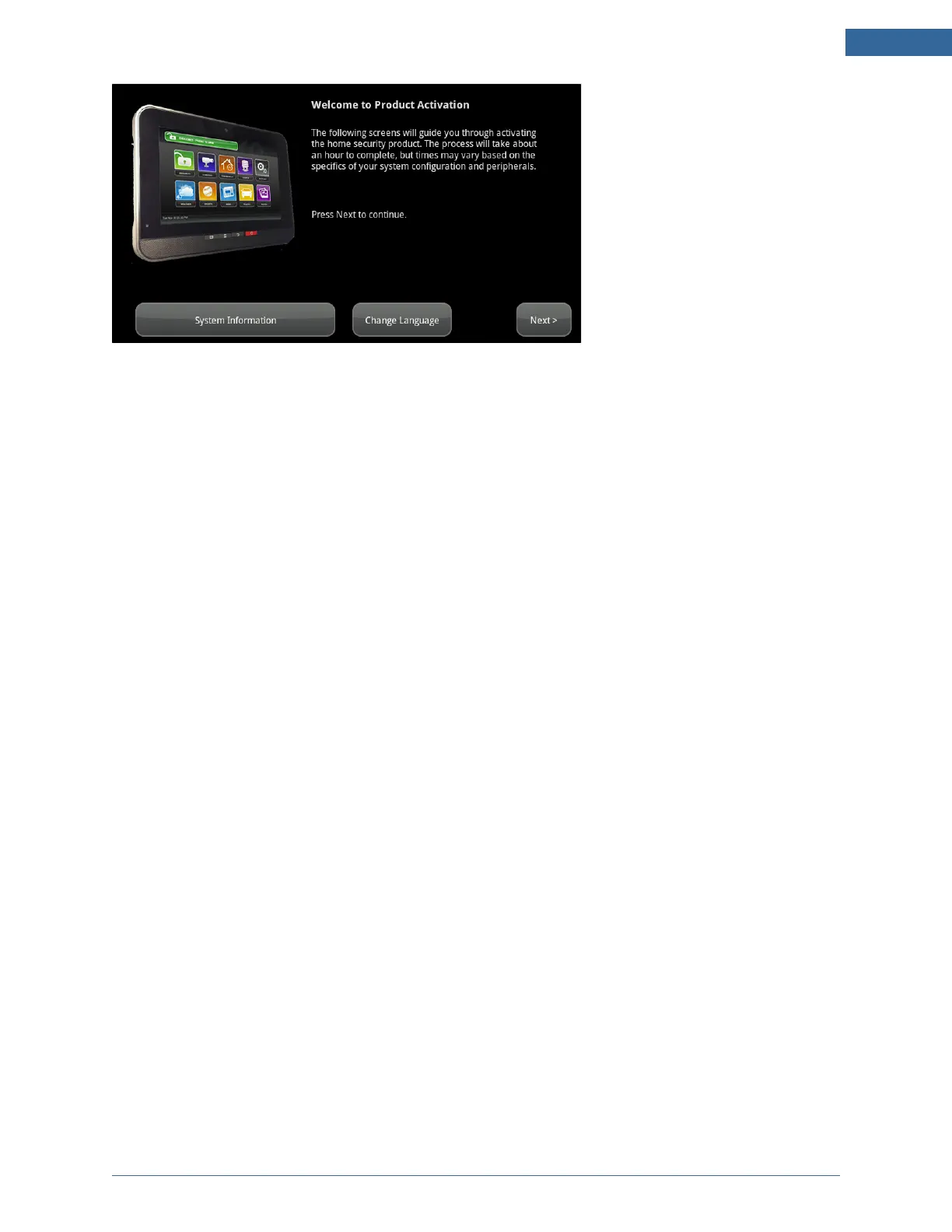

Figure 2: Activation: Installation Welcome Screen

Note: If the TouchScreen does not display the Installation Welcome screen, you must reset it to

factory default (see page 88).
