JOG EXCITE: Service & Maintenance Manual - rev. 1.1
Page 6.30

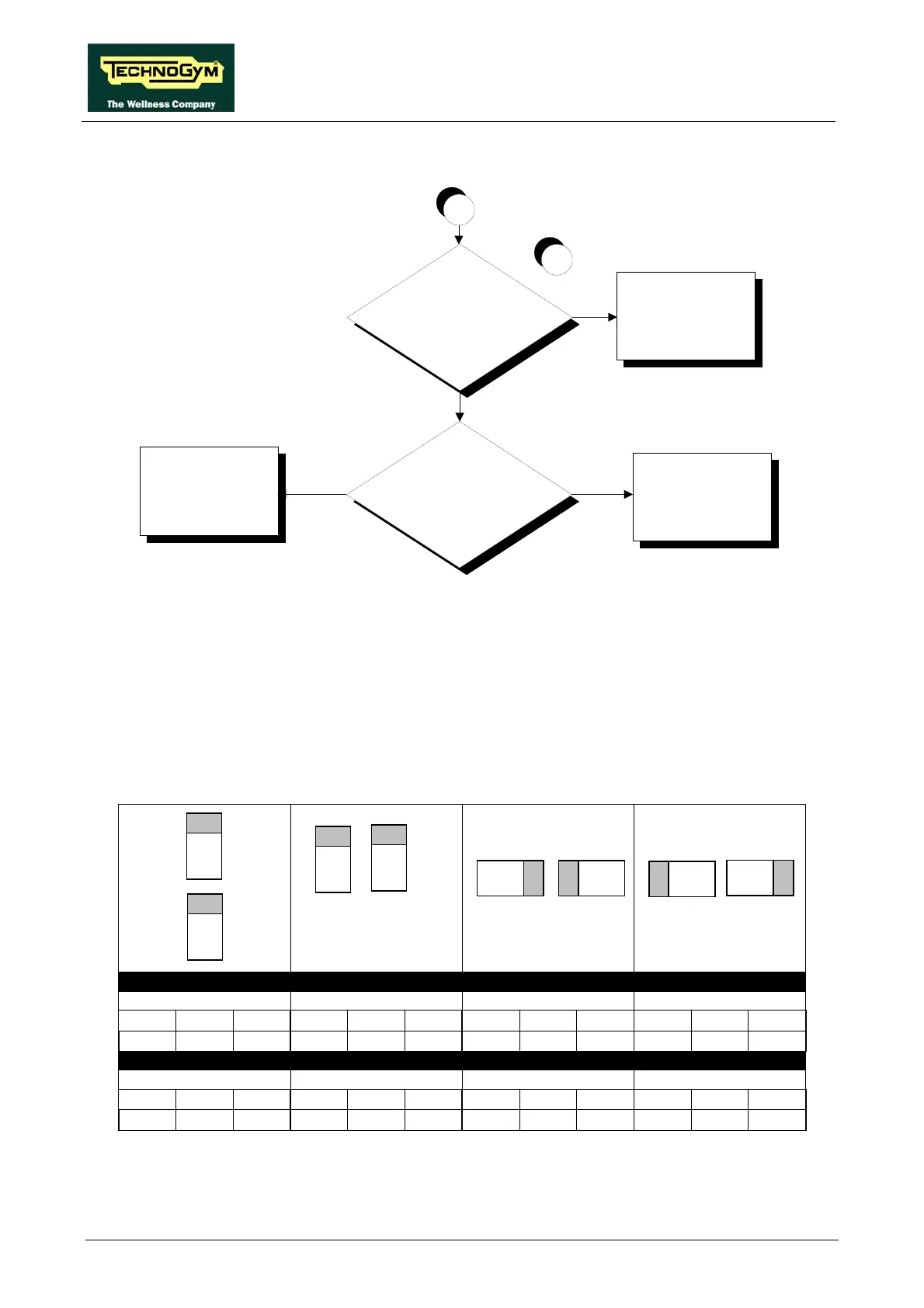

Is the transmitter always within
the 80 cm range f rom the
HS/cardio receiv e
NO
Reposition the transmitter
within range
YES
Replace the HS/cardio
receiver board
A
Is the transmitter in good
working order?
Use a correctly
functioning transmitter
YES
NO
5
Follow the procedure step by step to correctly diagnose the problem. Take particular care with the
checks highlighted by circled numbers, which are described in detail below:
(1) Check the earthing of the machine using a tester to measure the resistance between the ground
pin on the power supply cable and the ground node to which the receiver is connected inside
the display. The value must be less than 1 Ohm.
(2) In the table below , the minimum distances at which machines should be installed to avoid
crosstalk problems.
DISTANCE CASING-CASING
machine 2 machine 2 machine 2 machine 2
Bike Recline Run Bike Recline Run Bike Recline Run Bike Recline Run
10 20 10 50 50 40 10 10 10 10 40 10
DISTANCE RECEIVER-RECEIVER
machine 2 machine 2 machine 2 machine 2
Bike Recline Run Bike Recline Run Bike Recline Run Bike Recline Run
195 205 230 115 115 130 130 130 170 225 285 300
R
U
N
2
R
U
N
2
RUN
2
RUN
2
