JOG EXCITE: Service & Maintenance Manual - rev. 1.1
Page 7.19
7.17. DISASSEMBLING THE TREAD BELT GROUP
With these operations it is possible to disassemble:
• footrest;
• driving roller;
• tread belt motor drive-belt;
• running deck;
• driven roller;
• tread belt;
• shock absorbers.
In order to carry out these operations, it is necessary to slacken the tread-belt tension. If
the belt is to be used again, follow the instructions given in paragraph 8.2. “Tensioning a
used tread belt” to correctly re-tension the belt.

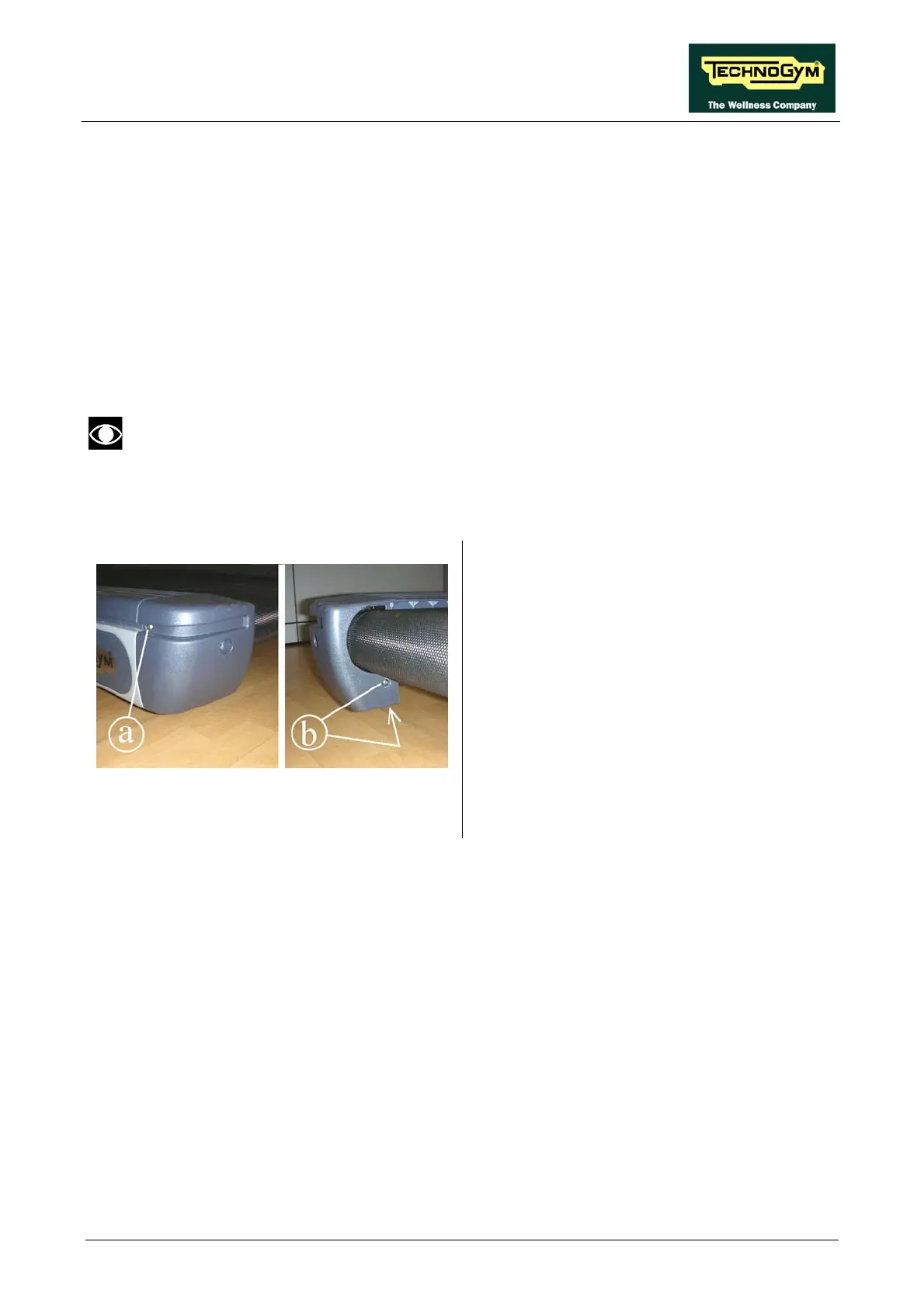

Figure 7.17-1
Carry out the procedure described in paragraph
7.9. “Disassembling the motor guard”.
1. Back off the screw a using a 3-mm hex
wrench.
2. Back off the 2 screw b using a 3-mm hex
wrench.
3. Remove the rear cover by pulling it toward
the back.
Continued on following page →
