JOG EXCITE: Service & Maintenance Manual - rev. 1.1
Page 7.7

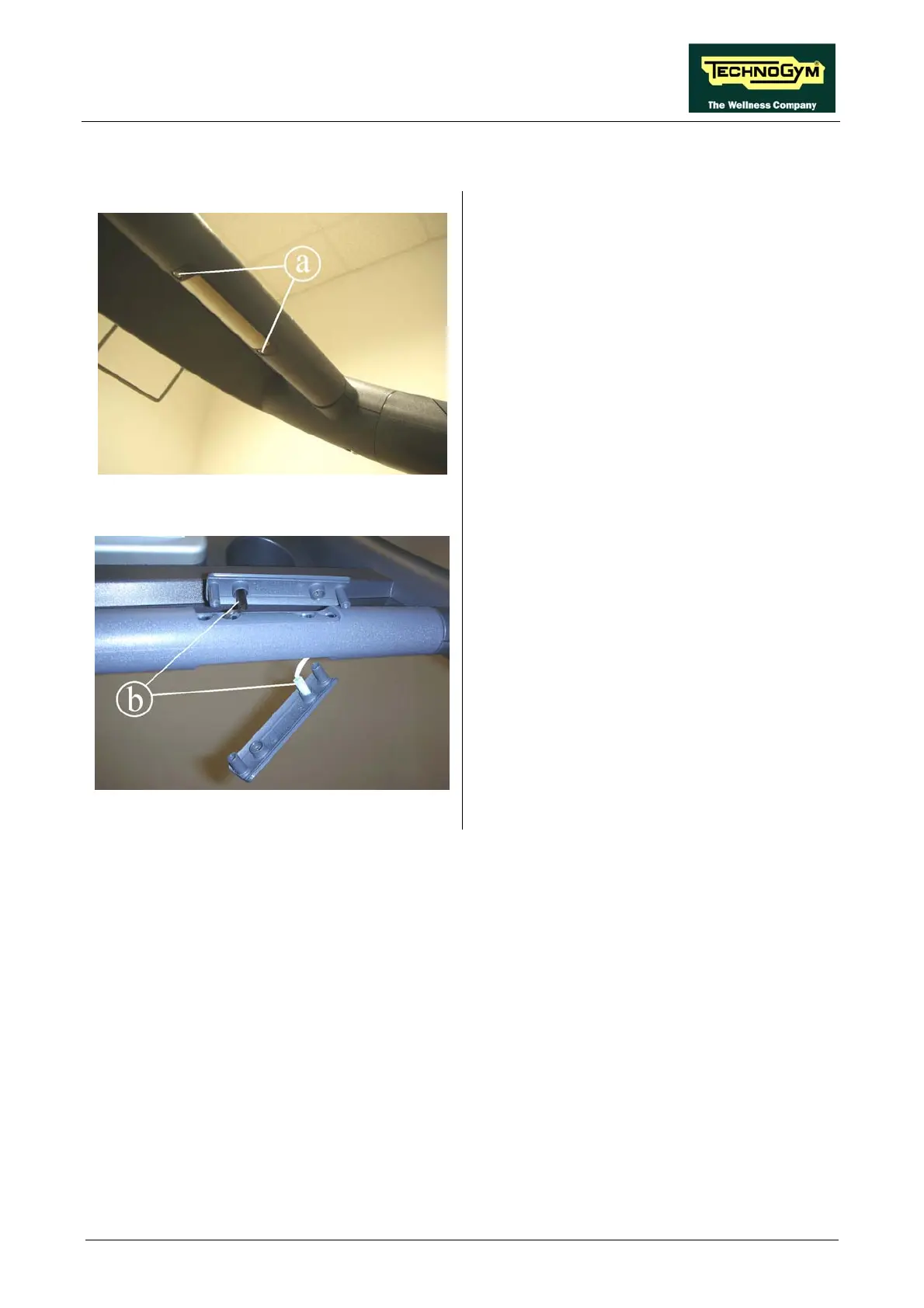

7.6. DISASSEMBLING THE SENSORS
Figure 7.6-1
1. Turn off the machine and unplug the mains
lead from the wall outlet.
For each sensor:
2. Back off the 2 screws a using a small Phillips
screwdriver.
Figure 7.6-2
3. Lift up the top sensor.
4. Remove the lower sensor.
5. To disconnect the sensors, unplug the two
fastons b.
To reassemble the sensors, carry out the above
steps in reverse order.
