JOG EXCITE: Service & Maintenance Manual - rev. 1.1
Page 7.12
7.11. DISASSEMBLING THE LIMIT SWITCH

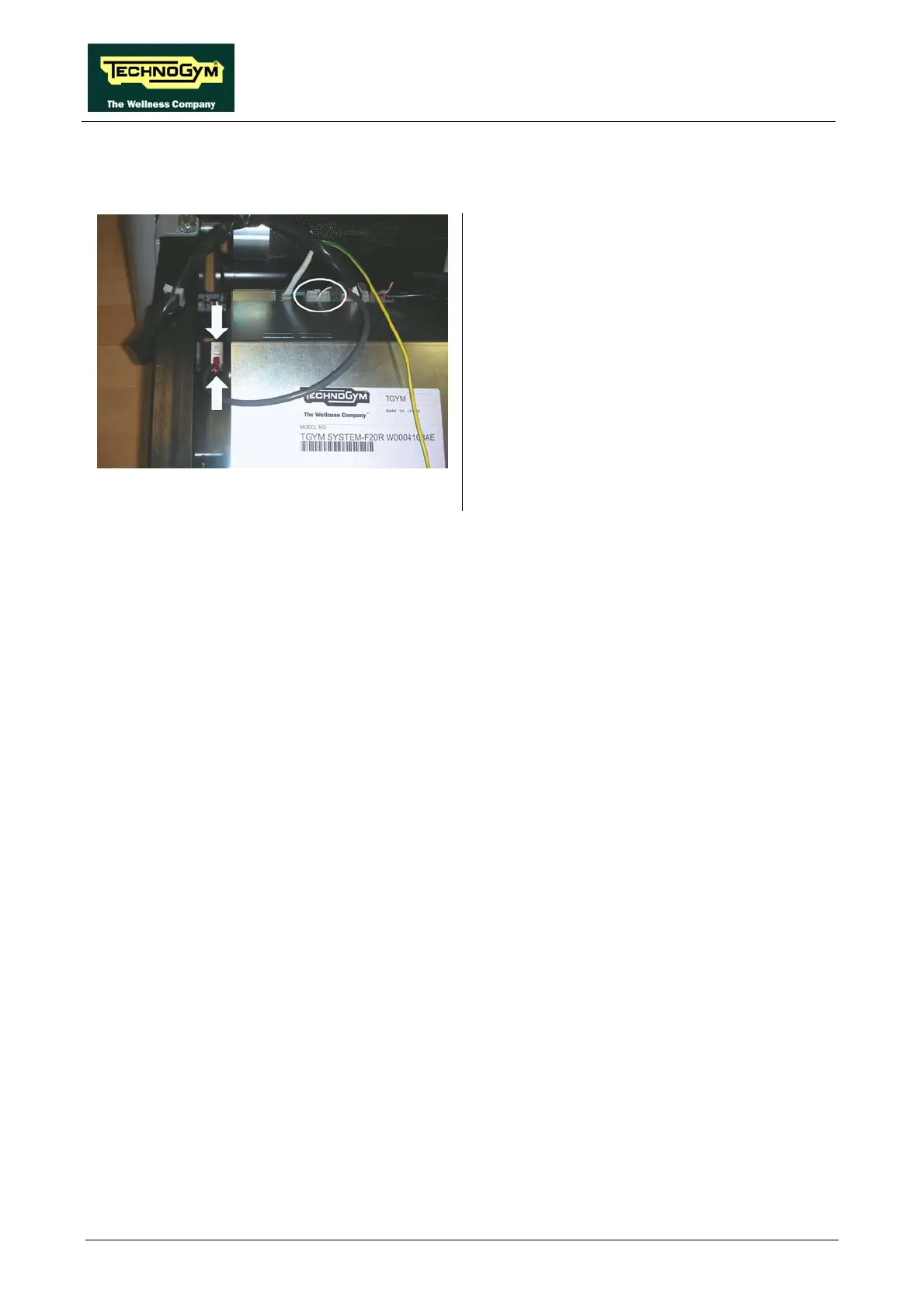

Figure 7.11-1
Carry out the procedure described in paragraph
7.9. “Disassembling the motor guard”.
1. Disconnect the connector of the limit switch
cable from the AT driver.
2. Press on both the sides of the limit switch
and pull it out from the lower side of the
machine.
To reassemble the limit switch, carry out the
above steps in reverse order.
