JOG EXCITE: Service & Maintenance Manual - rev. 1.1
Page 7.16
7.14. DISASSEMBLING THE POWER SUPPLY BOX

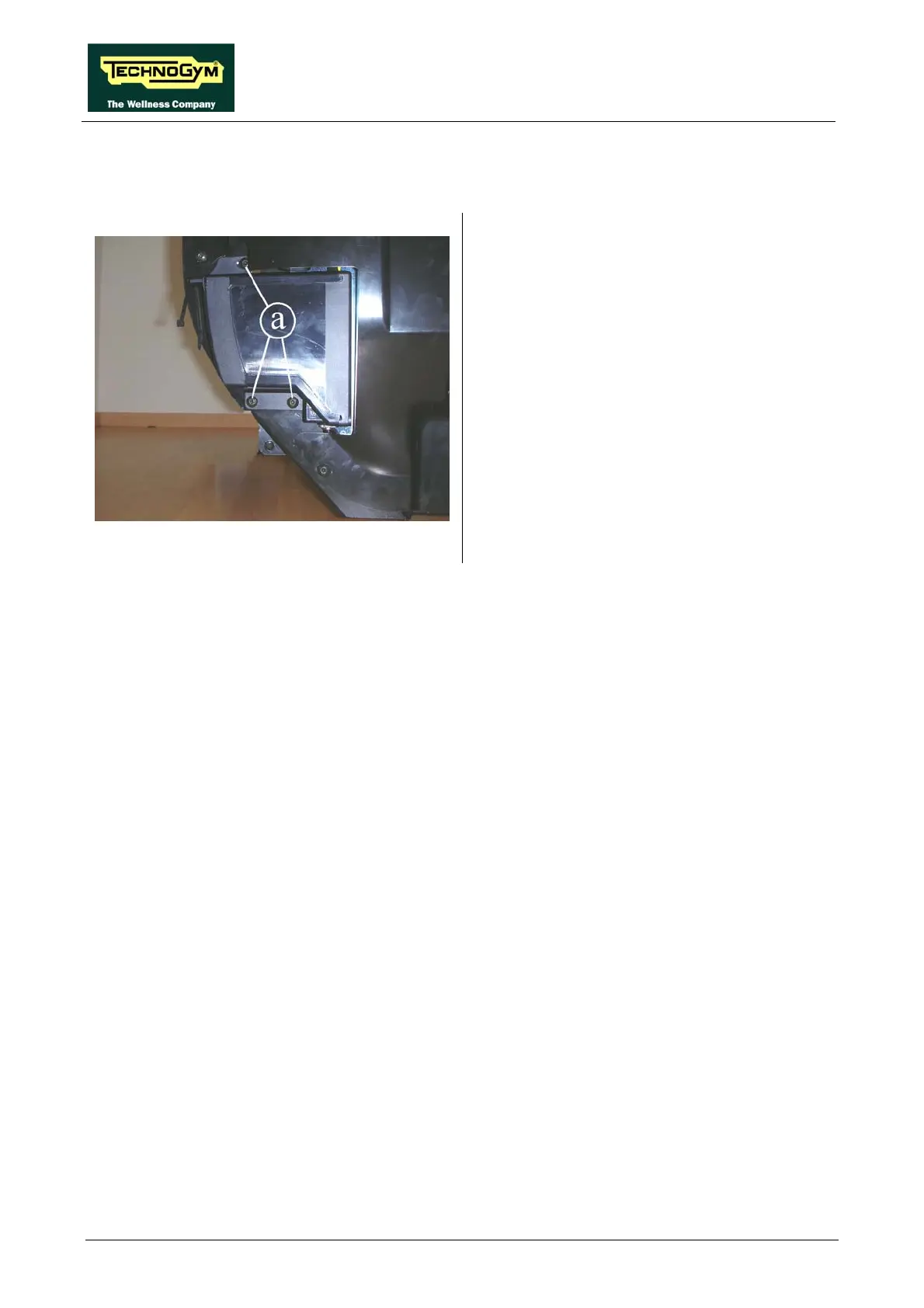

Figure 7.14-1
Carry out the procedure described in paragraph
7.9. “Disassembling the motor guard”.
1. Unplug the power supply cable from the AT
driver box.
2. Unplug the ground cable from the frame.
3. Back off the 3 screws a using a 4-mm hex
wrench.
4. Remove the power supply box.
To reassemble the power supply box, carry out
the above steps in reverse order.
