7.16. DISASSEMBLING THE ELEVATION MOTOR

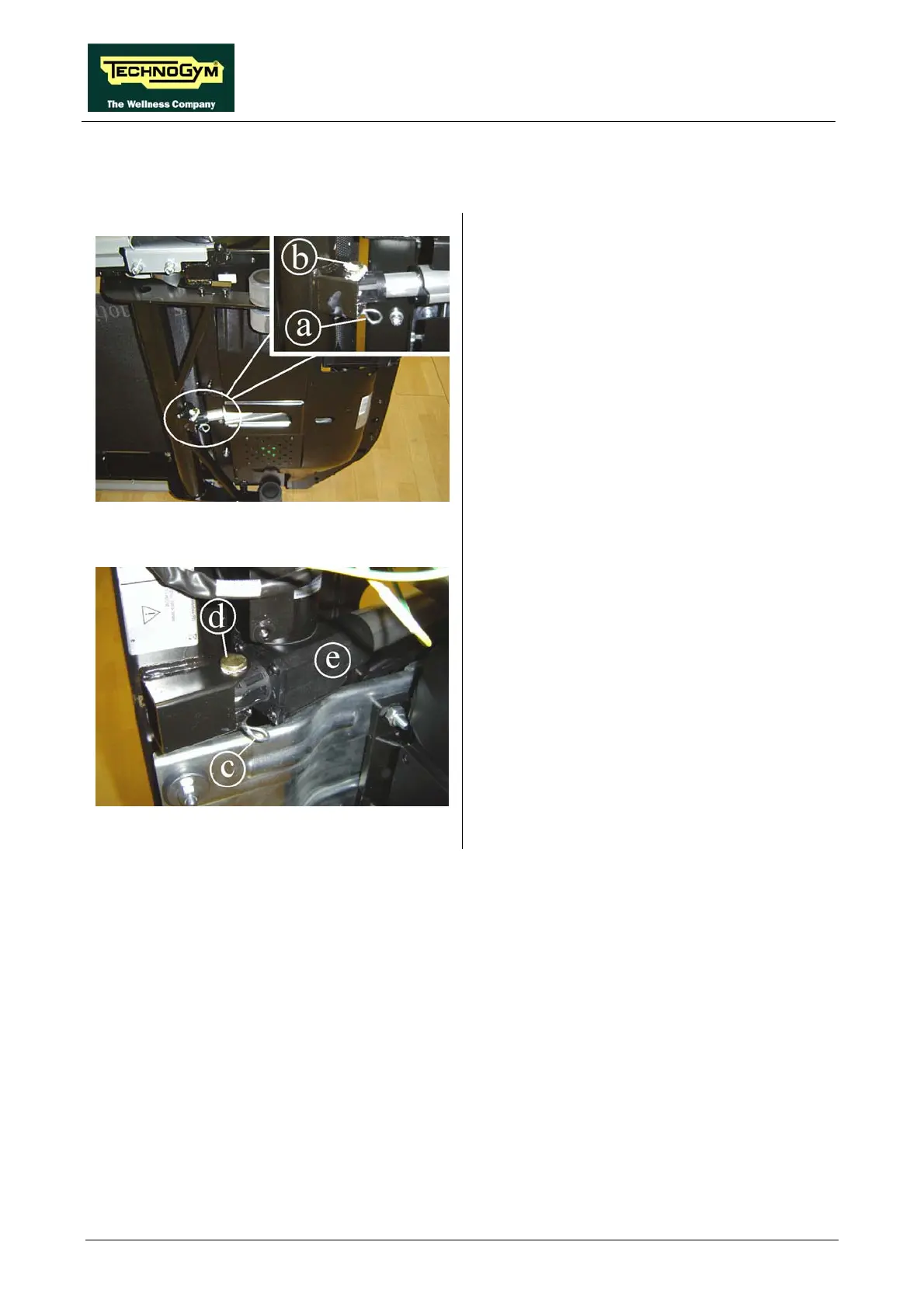

Figure 7.16-1
Carry out the procedure described in paragraph
7.12. “Disassembling the electrical box”.
1. Turn the machine over on one side.
2. Remove the split pin a and then the pin b
securing the elevation motor assembly to the
elevation frame.
Figure 7.16-2
3. Remove the split pin c and then the pin d.
4. Remove the elevation motor e.
To reassemble the elevation motor, carry out the
above steps in reverse order.
