JOG EXCITE: Service & Maintenance Manual - rev. 1.1
Page 7.5

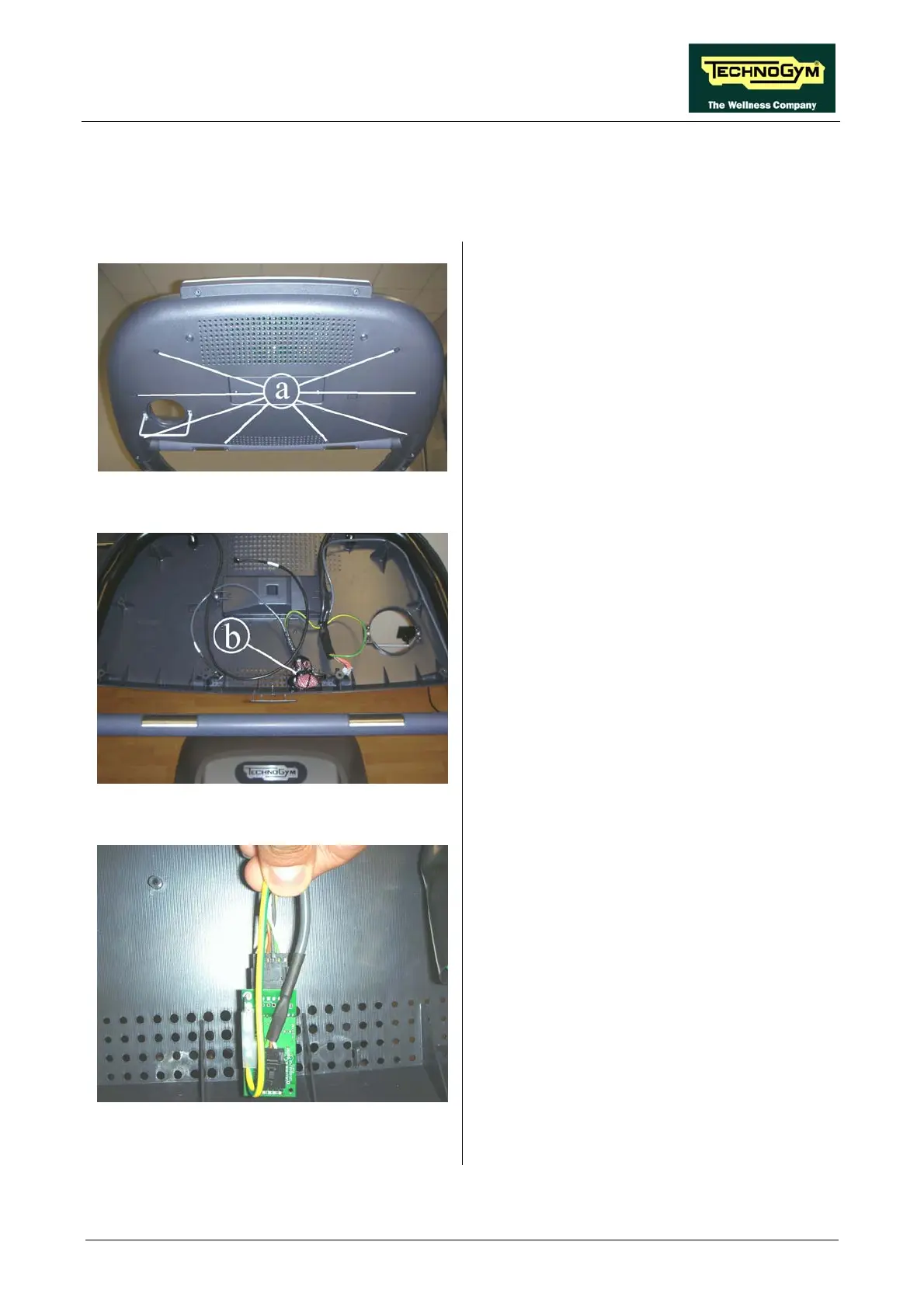

7.5. DISASSEMBLING THE CARDIO RECEIVER/HAND
SENSOR BOARD
Figure 7.5-1
Carry out the procedure described in paragraph
7.1. “Disassembling the display”.
1. Back off the 8 screws a using a medium
Philips screwdriver.
2. Remove the front display casing.
Figure 7.5-2
3. Cut the cable tie and remove the
Receiver/hand sensor board from the nylon
bag.
Figure 7.5-3
To assemble the new receiver:
1. Connect the cable to the board and bend the
cables on the rear side of the board.
Continued on following page →
