Technogym JOG EXCITE - Disassembling the Motor Compartment Fan

JOG EXCITE: Service & Maintenance Manual - rev. 1.1
Page 7.11
7.10. DISASSEMBLING THE MOTOR COMPARTMENT FAN

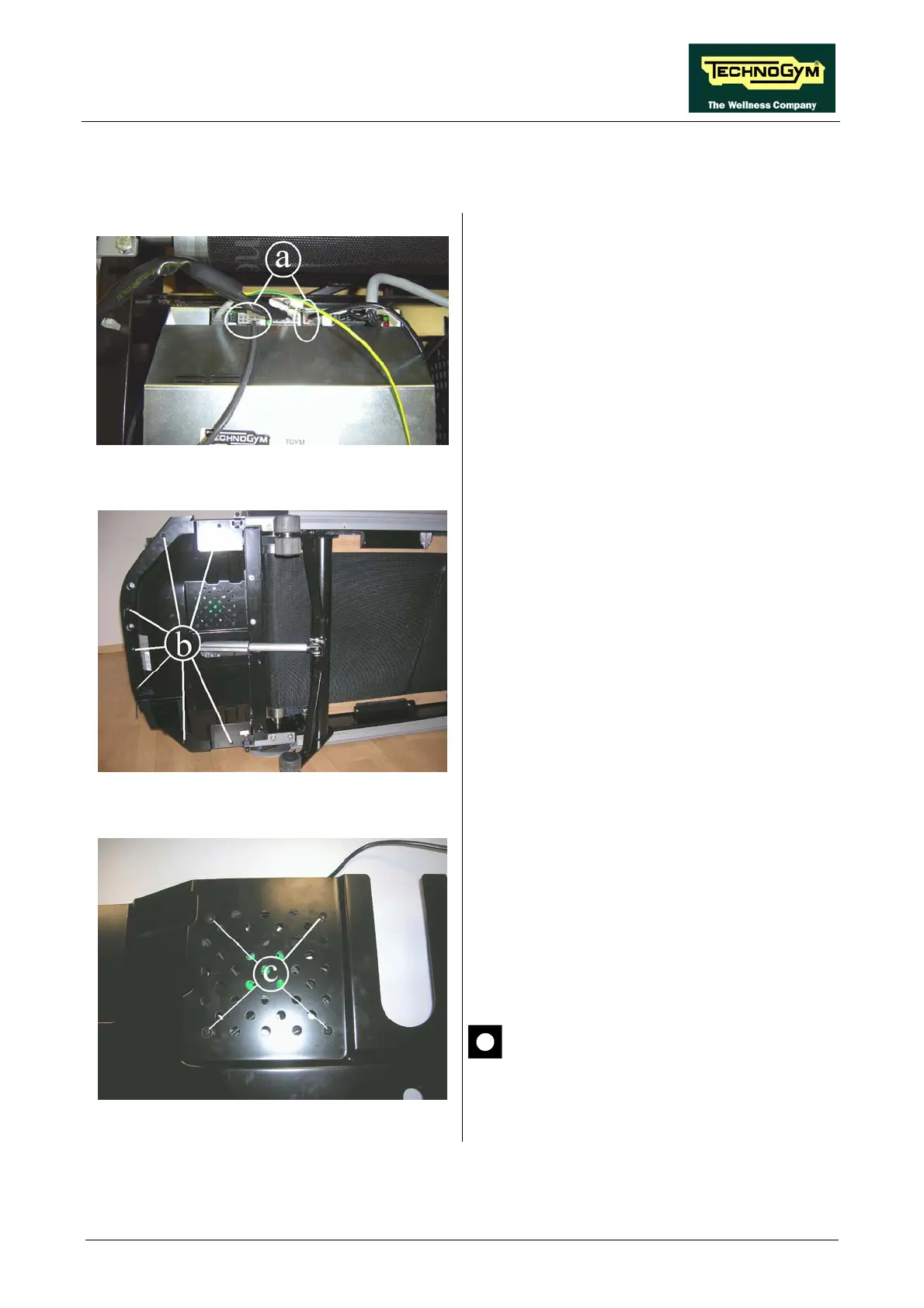

Figure 7.10-1
Carry out the procedure described in paragraph
7.9. “Disassembling the motor guard”.
1. Disconnect from
the AT driver the 2
connectors a indicated in the figure, of the
fan and of the limit switch.
Figure 7.10-2
2. Turn the machine over on one side.
3. Back off the 7 screws b using a 4-mm hex
wrench.
4. Remove the lower casing plate.
Figure 7.10-3
5. Back off the 4 screws c using a medium
Phillips screwdriver.
6. Remove the fan from the lower casing plate.
To reassemble the fan, carry out the above steps
in reverse order.
Remember to connect again the limit
switch cable.
