JOG EXCITE: Service & Maintenance Manual - rev. 1.1
Page 8.4
8.4. POSITION OF THE LIMIT SWITCH

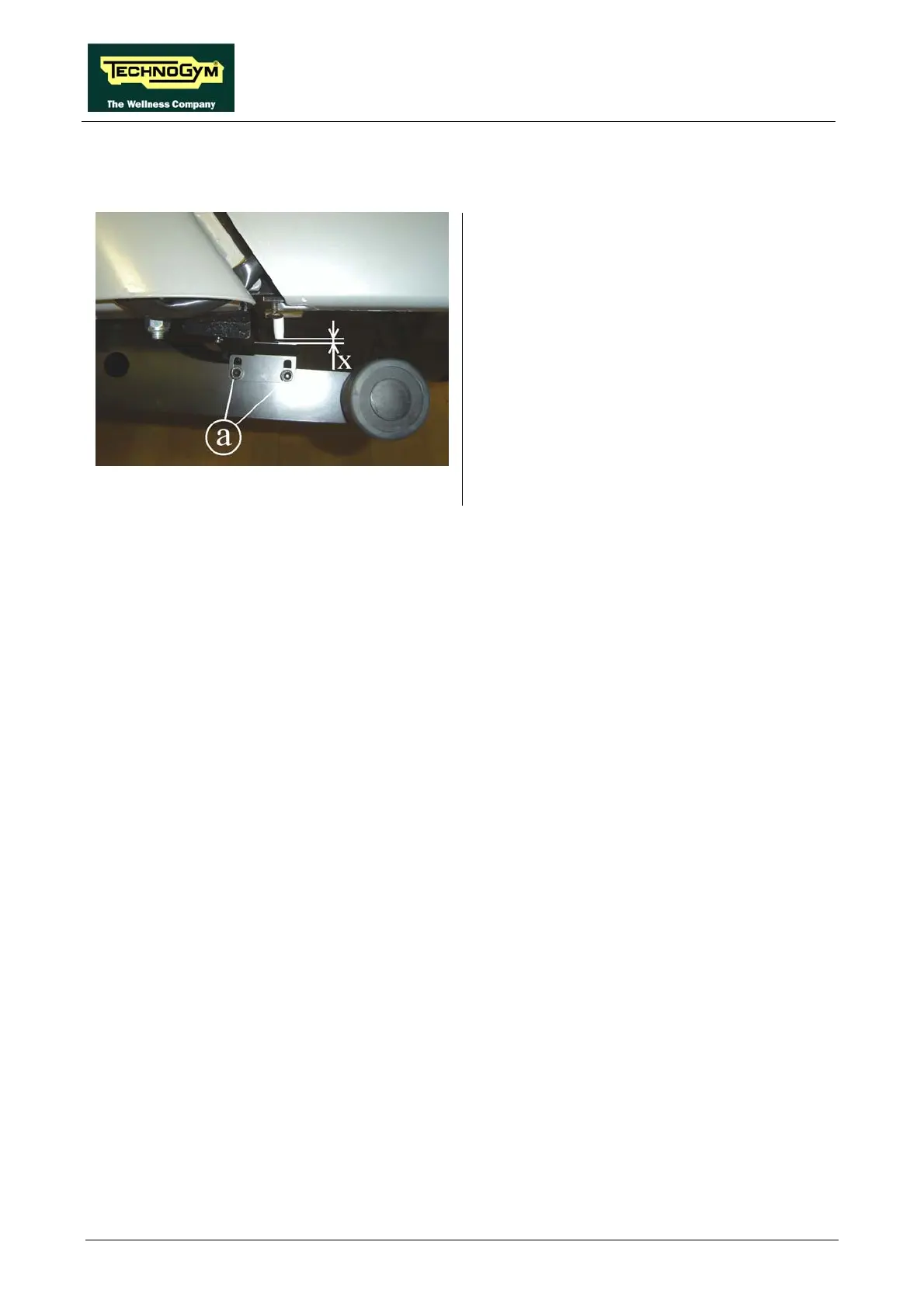

Figure 8.4-1
1. Back off the 2 screws a fixing the limit
switch stop plate.
2. Adjust the position of the plate so that setting
0% of elevation, the distance x from the
microswitch and the plate is about 5 mm.
3. After making the adjustment, lock down the
screws a backed off previously.
