JOG EXCITE: Service & Maintenance Manual - rev. 1.1
Page 7.6

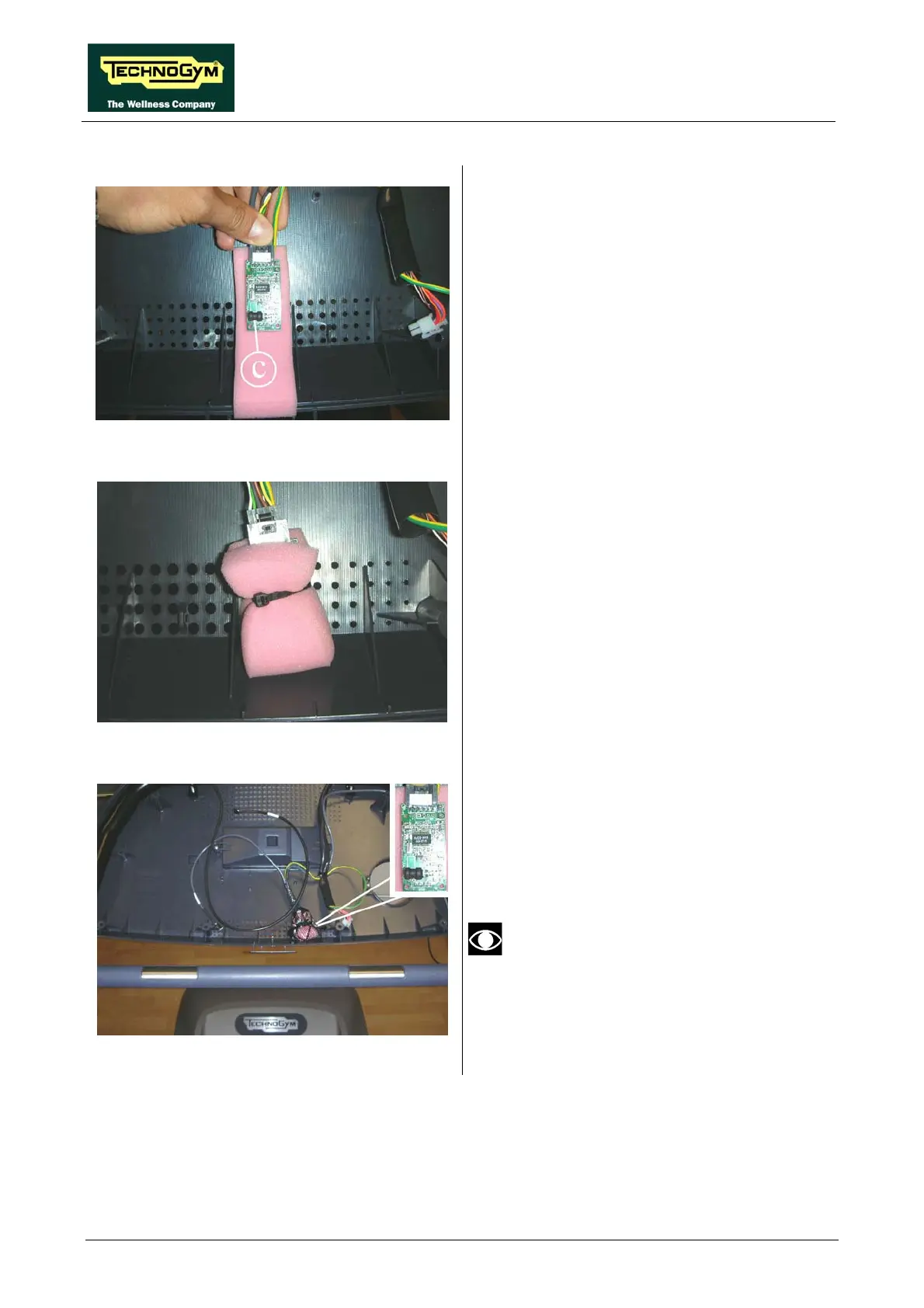

Figure 7.5-4
2. Place the board on the sponge taking care
that the coil is upward.
Figure 7.5-5
3. Fold the sponge on the board as shown in the
picture.
4. Secure the sponge on the board with some
tape or with a cable tie. Make sure it is
secured but not too fasten.
Figure 7.5-6
5. Encase the board in a plastic bag.
6. Close and secure the plastic bag with some
tape on the cable as indicated in the figure.
the receiving coil must be oriented
upwards and toward the user (as shown
in the figure to side).
