KINESIS ONE: Service & Maintenance Manual rev. 2.1
Page 6.11

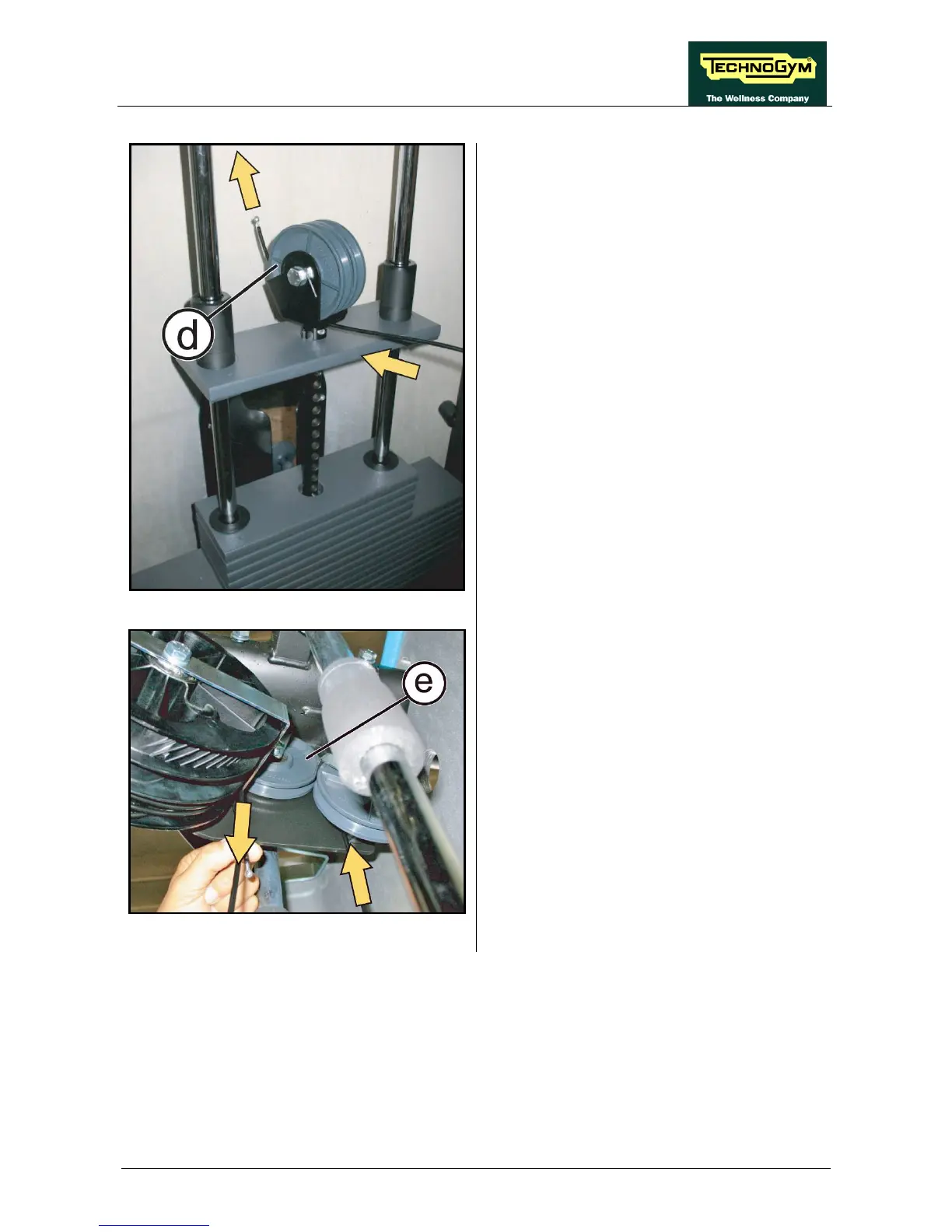

Figure 6.4-8
6. Pass the cable on the external pulley (d) of
the cross, routing it from the back to the front
side of the pulley.
Figure 6.4-9
7. Route the cable on the small pulley (e) fixed
on the top side of the frame as shown in the
figure.
8. Pull the cable back to the bottom and pass it
on the tension adjusting pulley.
Continued on following page
→
