User’s manual 10 UPS EVO DSP PLUS Modular

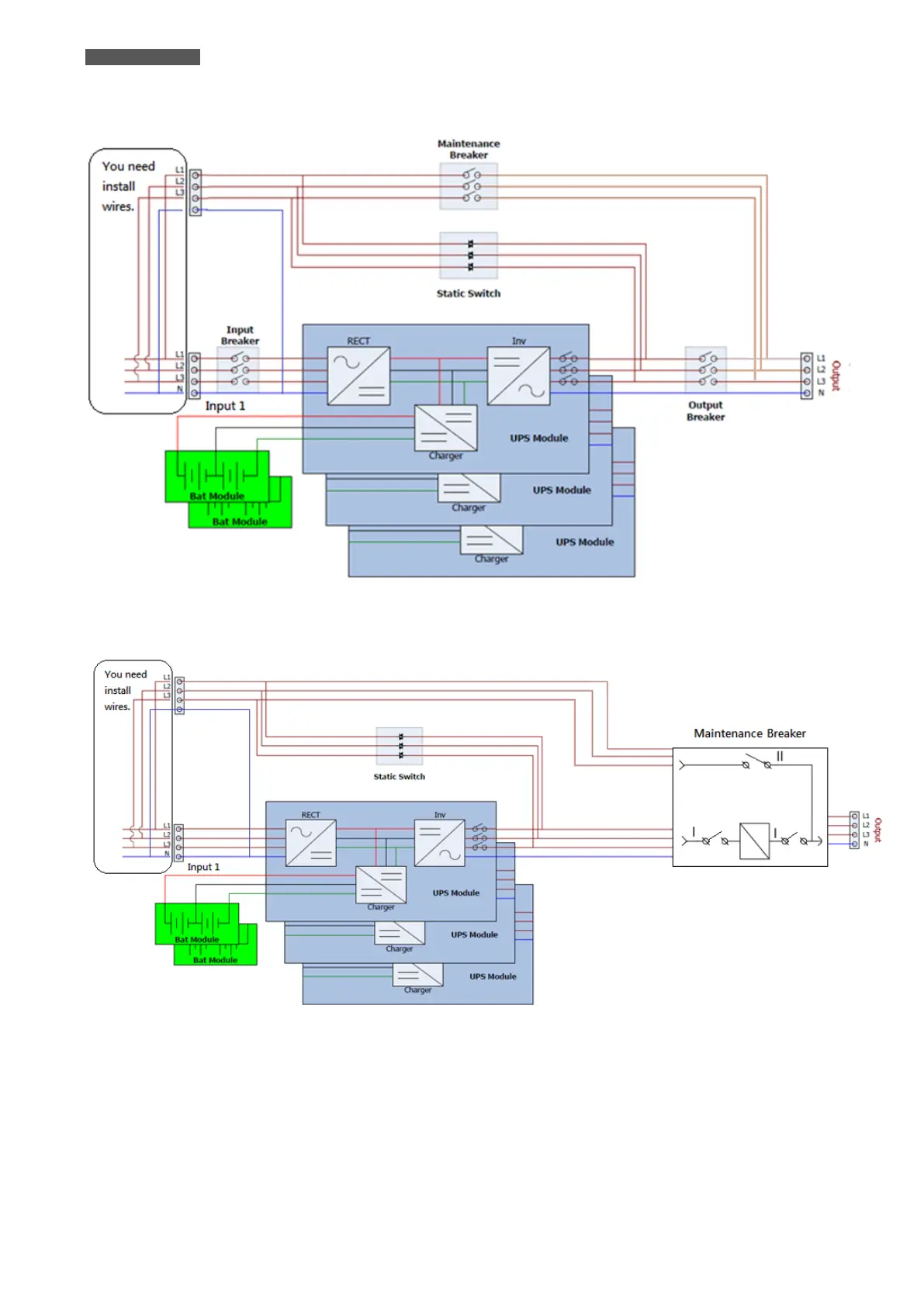

Figure 4.1c – Block and Wiring Diagram for single Input (80KVA~210KVA cabinet)
Figure 4.1d – Block and Wiring Diagram for single Input (only 300KVA cabinet)
