ENGLISH
UPS EVO DSP PLUS Modular 15 User’s manual
4.2.5 ECO Mode
The ECO Mode can be enabled through the LCD control panel. In ECO mode, the load is powered by Bypass when
the Bypass Voltage and Frequency are within the acceptable ranges. If the Bypass is out of range, the UPS will
transfer the power source of load from Bypass to Inverter. In order to shorten the transfer time, the Rectifier and
Inverter are working when the UPS is in ECO mode.

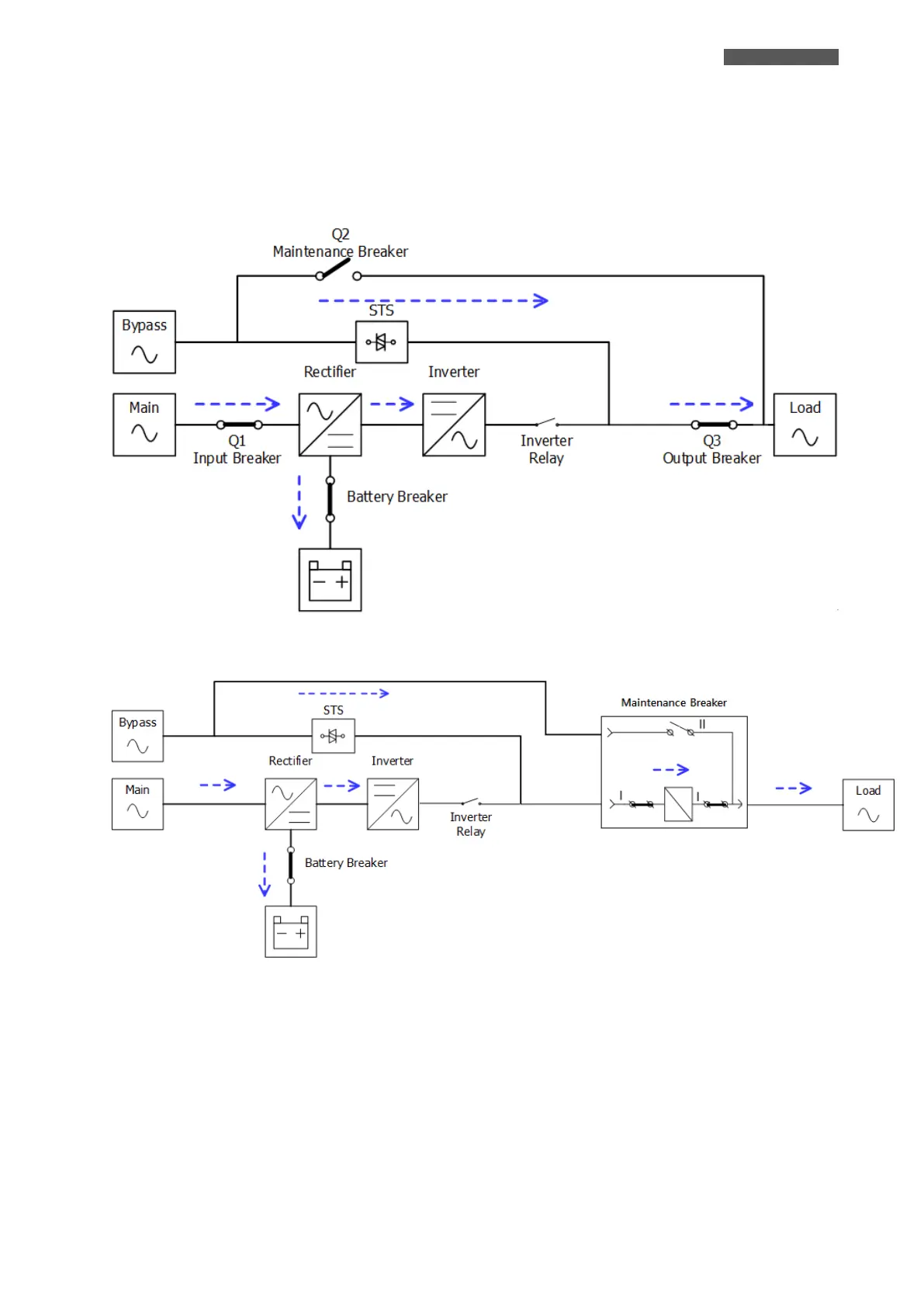

Figure 4.6 – ECO Mode Diagram (up: 80KVA~210KVA cabinet; down: only 300KVA cabinet)
