ENGLISH
UPS EVO DSP PLUS Modular 59 User’s manual
9.2.4 Breakers

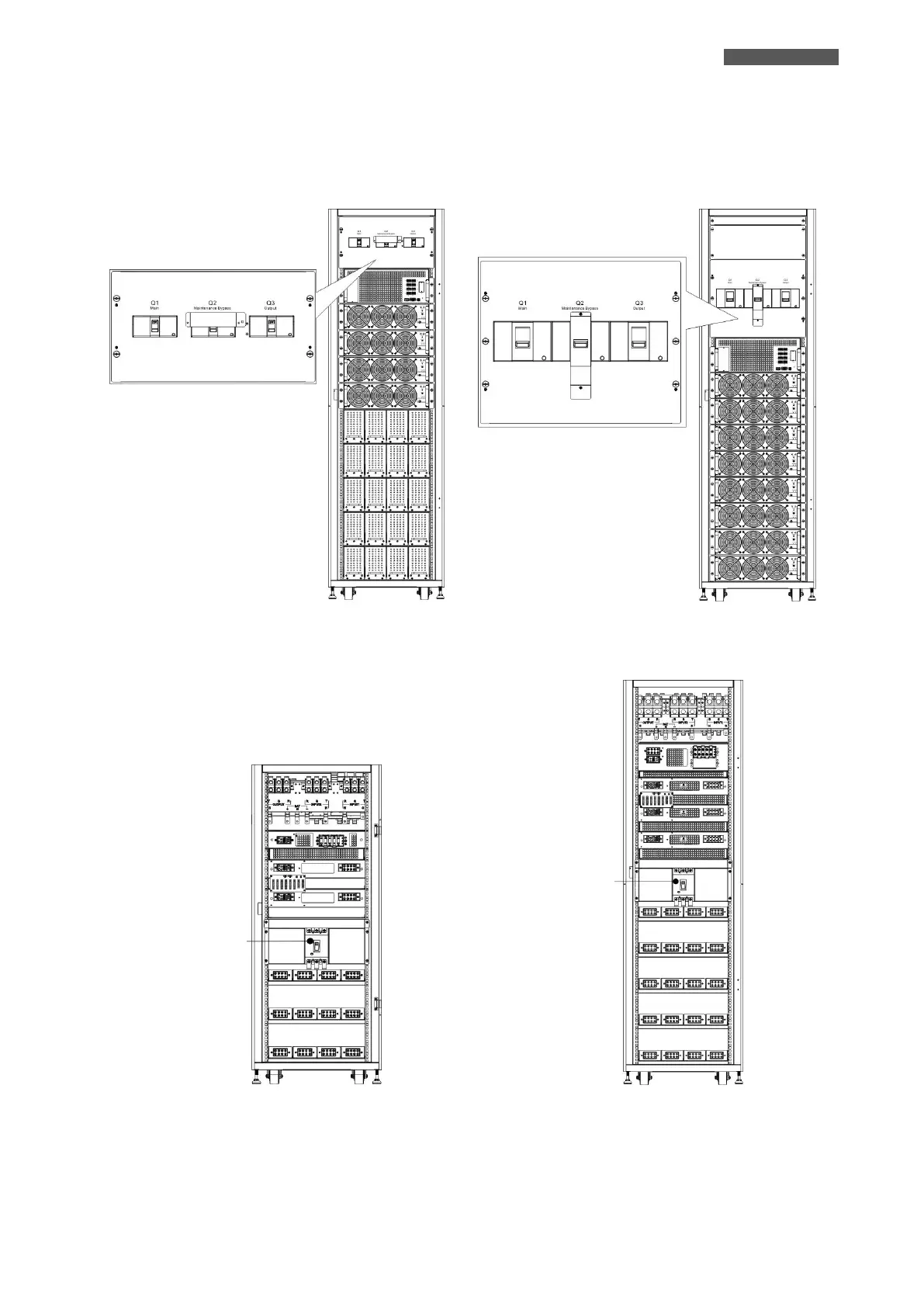

Open the front door and you will see three Breakers: Main Breaker (Q1), Maintenance Breaker (Q2) and Output
Breaker (Q3). The 300KVA cabinet has Maintenance Bypass Switch Only (see section 9.2.5).
For the Standard Series, there is a Battery Breaker for internal Battery Modules. You can see it when you open the
rear door.
Standard Series (42U)
Extended Series (42U)
Figure 9.6 – Front Breakers
Standard Series (30U)
Standard Series (42U)
Figure 9.7 – Rear Breakers
Battery
Breaker
Battery
Breaker
