9.2.6 Wiring Terminal Blocks
After opening the rear door, you will see the Wiring Terminal Blocks. For UPS cabinet wiring, please refer to
Figure 9.9, 9.10 and 9.11.
No.
Item
Function
Description
1
Output Block
Connects Output Line for
critical loads
Include: R, S, T and Neutral
terminals.
2
Bypass Input Block
Connects Bypass Input Line
Includes R, S, T and Neutral
terminals.
3
Main Input Block
Connects Main Input Line
Includes R, S, T and Neutral
terminals.
4
For UPS Grounding
For UPS Grounding
Includes one Grounding terminal.
5
Battery Input
Block
Connects an external Battery
Cabinet
Includes: Positive (+), Negative (-) and
Neutral (N) terminals.

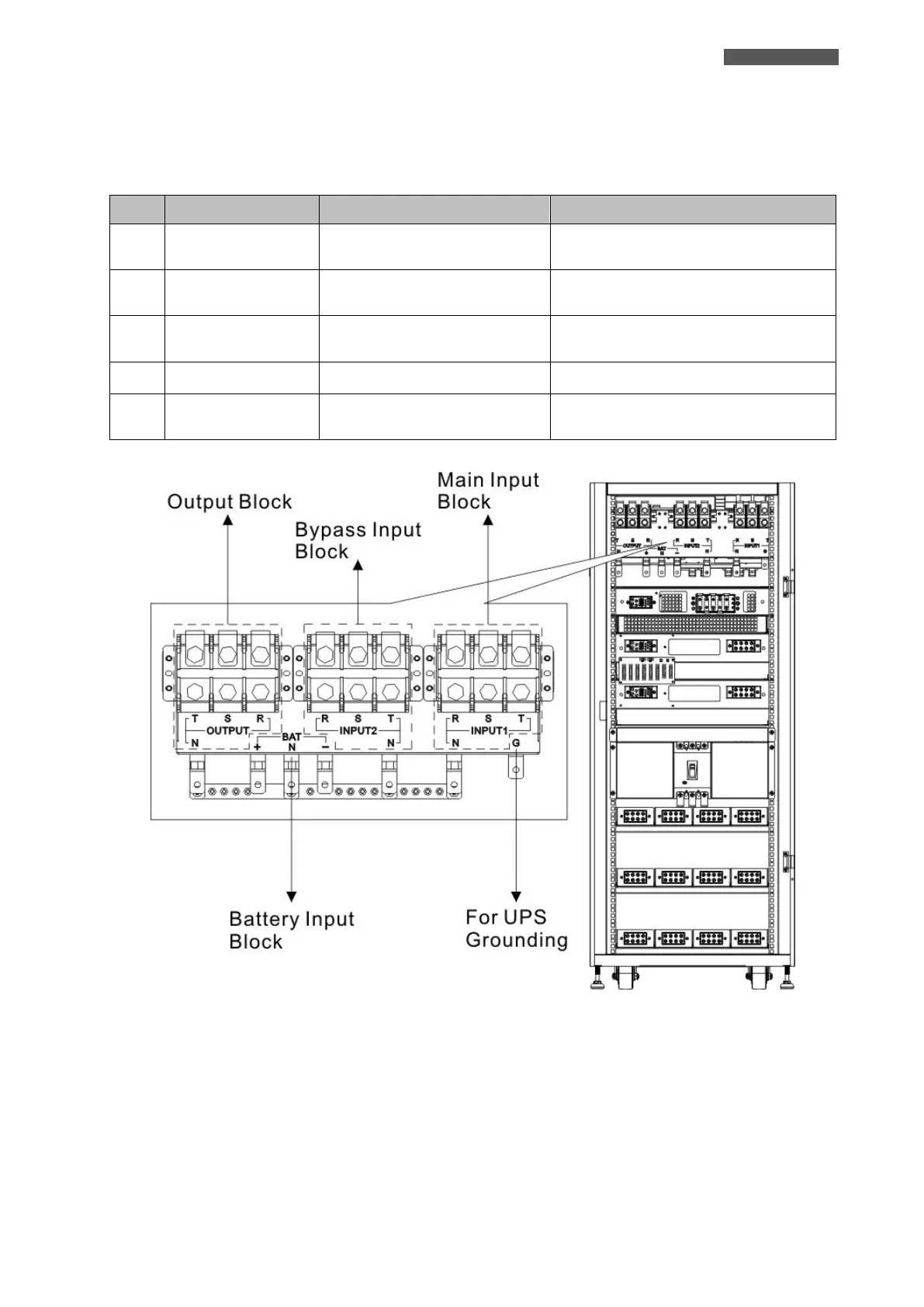

Figure 9.9 – Standard Series (30U) Terminal Blocks
