USER MANUAL

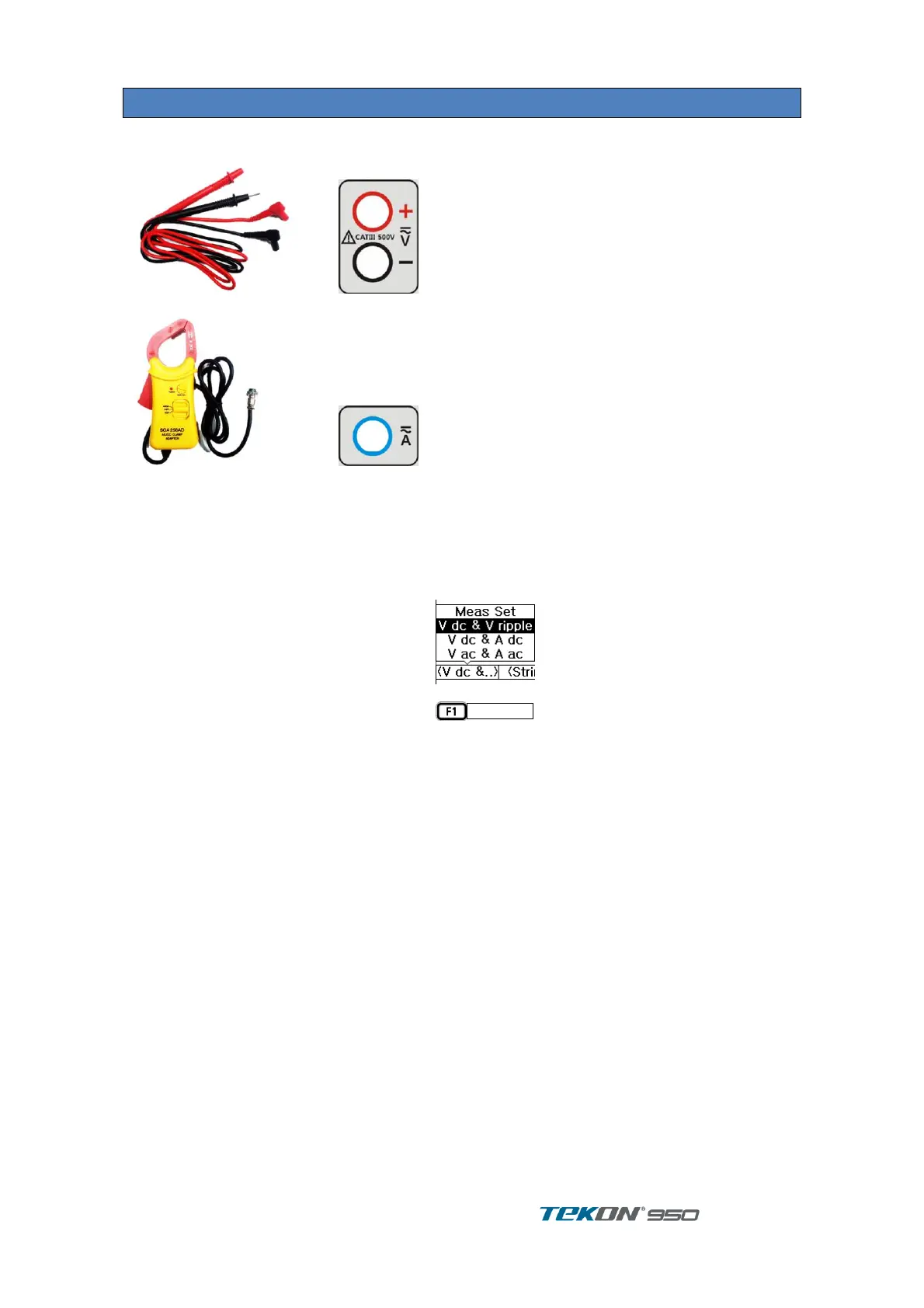

4. V.A measurement
4.1. Test Probe Insert
Figure 17. Voltage Test Lead
Figure 18. Voltage Input Terminal
Figure 19. Current Clamp
Figure 20. Clamp Input terminal
4.2. Measurement Set Selection
The Unit can measure DC Voltage , AC Voltage , DC Currents , AC Currents Ripple Voltage.
V.A measurement function is consist of following 3 test sets.
Simultaneous 2- measurement available depend on selection .
 DC Voltage & Ripple Voltage
 DC Voltage & DC Current
 AC Voltage & AC Current
In V.A measurement function display, press to select
Record Saving is available up to 1000 combination 2-measurement sets ( 3 different type sets
as above )
In String Record, each String can save up to 512 including 3 different type measurements.
Meas Set
