Tekon 950 - String Record Management; Impedance Record

USER MANUAL
37

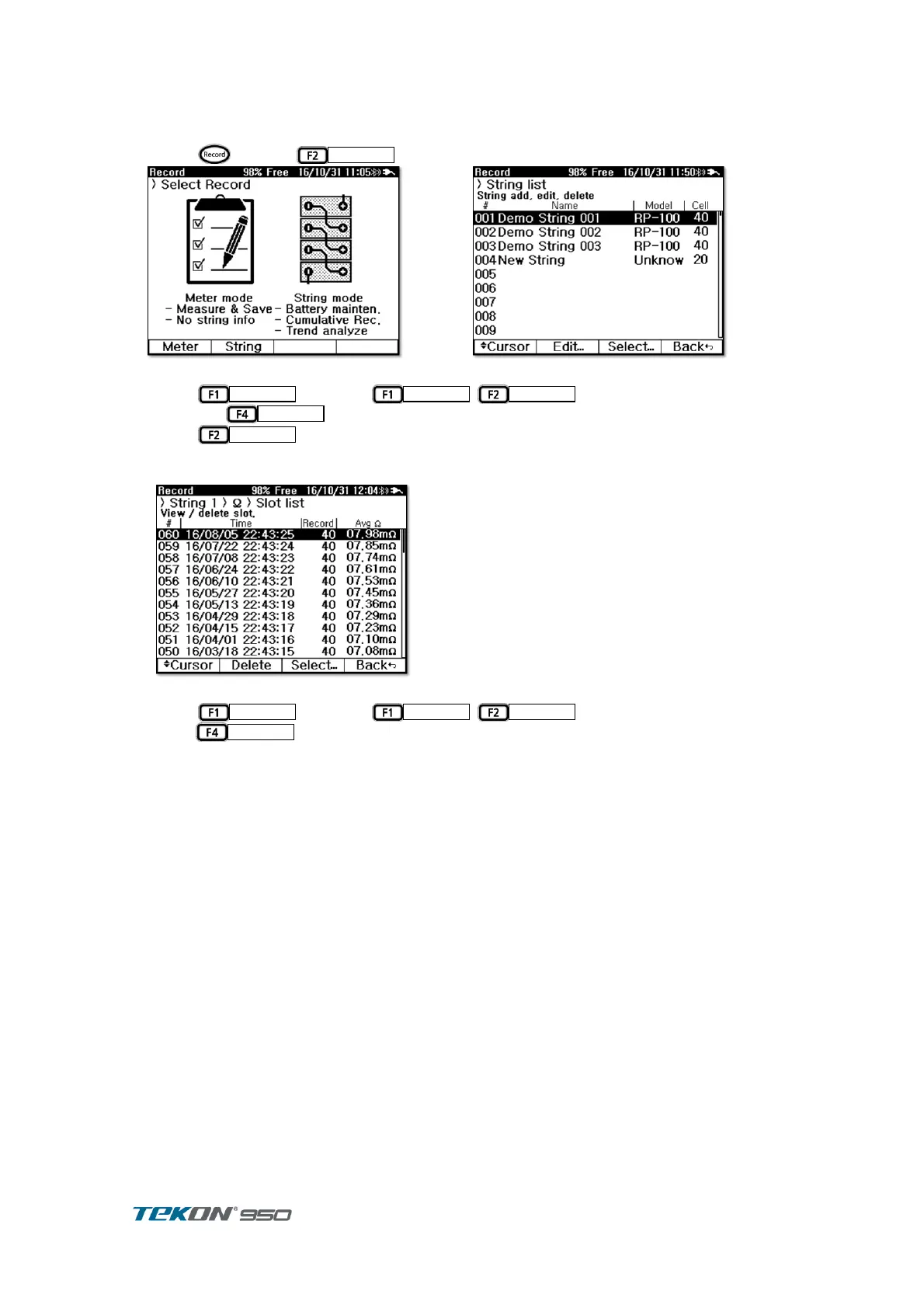

5.4. String Record management
5.4.1. Impedance Record
Press to select in Record display. ①
Figure 59. Record Initial display
Figure 60. String List
Press and press
,
to move Cursor to the string ②
and press
.
Press
.
③
Slot of string measurement is displayed ④
Measurement time, Record number, average Impedance value are displayed.
Figure 61. Measurement slot list
Press and press
,
to move Cursor to the slot and ⑤
press
.
String
▲▼Cursor
▲
▼
Back ↩
Select...
▲▼Cursor
▲
▼
Back ↩
